81GHz to 86GHz Bandpass Microwave Filter Rejection Frequency 88GHz to 120GHz Waveguide Bandpass Filter

81GHz to 86GHz Bandpass Microwave Filter Rejection Frequency 88GHz to 120GHz Waveguide Bandpass Filter

0 out of 5

81GHz to 86Hz Bandpass Microwave Filter model OWBP-81008600-10 is W Band Waveguide Bandpass filter with a passband frequency from 81GHz to 86GHz and a rejection frequency 88GHz to 120GHz. Due to the waveguide cut off nature of Waveguide Bandpass filter, the low side of this RF filter has rejection range of DC to 78GHz. Our 81GHz to 86GHz Bandpass Microwave Filter provides a nominal insertion loss of 2.0 to 2.5dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of waveguide Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 81GHz to 86GHz Bandpass Microwave Filter has passband return loss of 14dB and power handling of 10W.
81GHz to 86GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 81GHz to 86GHz Bandpass Microwave filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-81008600-10 Categories: RF Filter Bandpass, RF Filters, Routing

Description

PDF

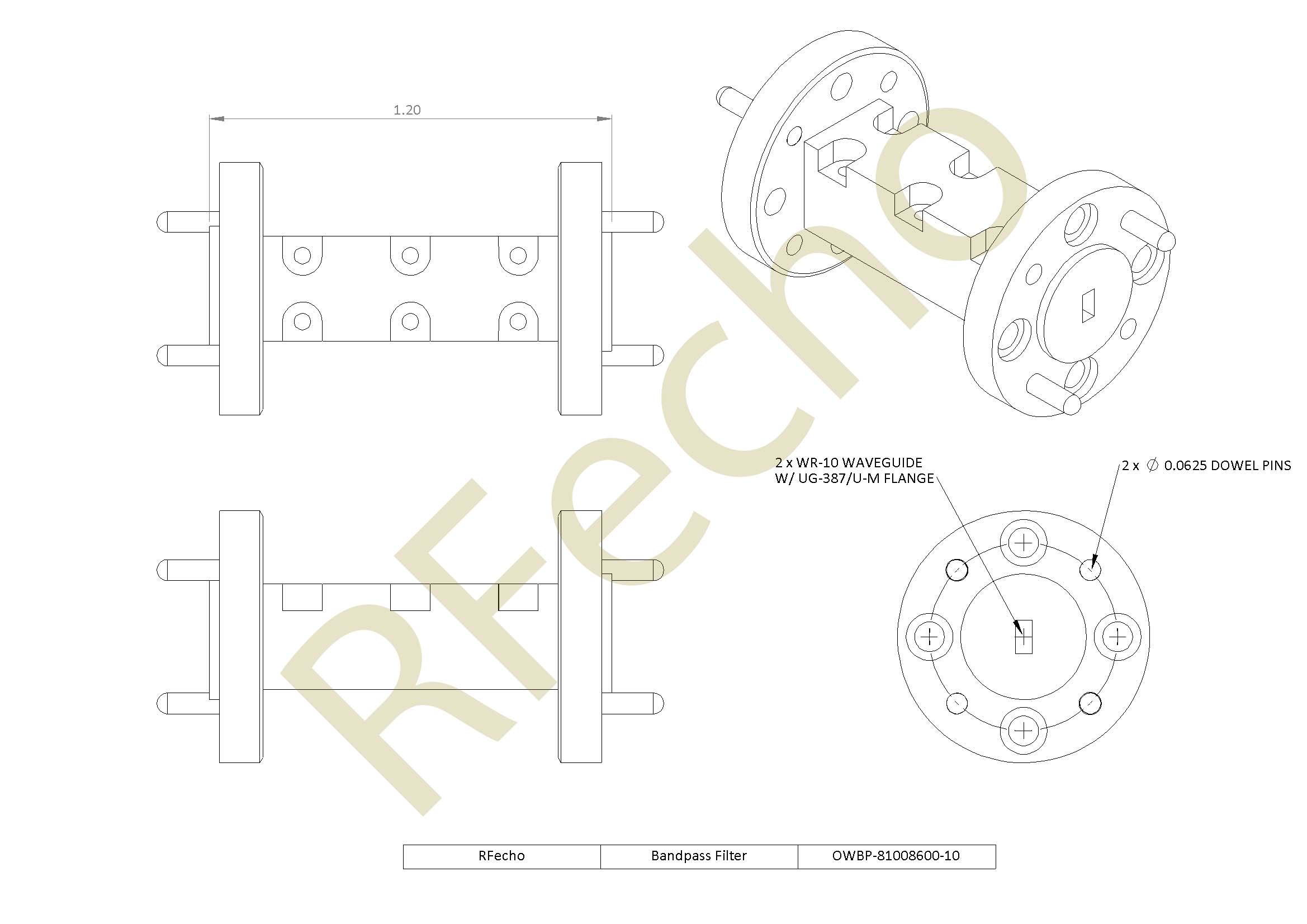

Outline

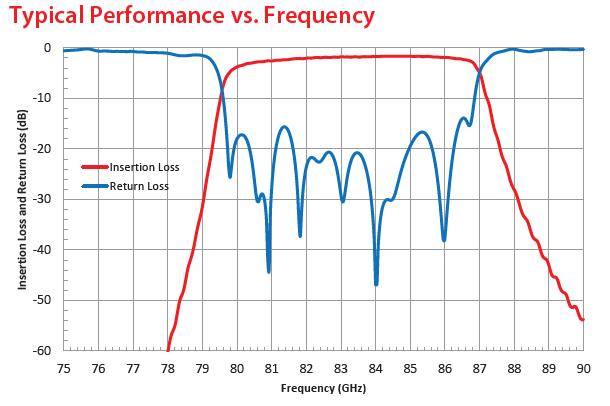

Plot

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

81

Max Pass Band Freq. (GHz)

86

Insertion Loss (dB)

2.0-2.5

Rejection (dB)

40-50

Max Rejection Freq. Lowside

78

Min Rejection Freq. Highside

88

Waveguide Port

WR-10
