81GHz to 86GHz Waveguide Bandpass Filter model OWBP-81008600-12 is E Band Waveguide Bandpass filter with a passband frequency from 81GHz to 86GHz and a rejection frequency 90GHz to 120GHz. Due to the waveguide cut off nature of Passive Bandpass filter, the low side of this RF filter has rejection range of DC to 68GHz. Our 81GHz to 86GHz Waveguide Bandpass Filter provides a nominal insertion loss of 2.0 to 2.5dB across its passband and a typical rejection of 40-50dB. Since the high end cutoff frequency of Passive Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 81GHz to 86GHz Waveguide Bandpass Filter has Passband return loss of 14dB and operating temperature of -40C to -85C.
81GHz to 86GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 81GHz to 86GHz Waveguide Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-81008600-12 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

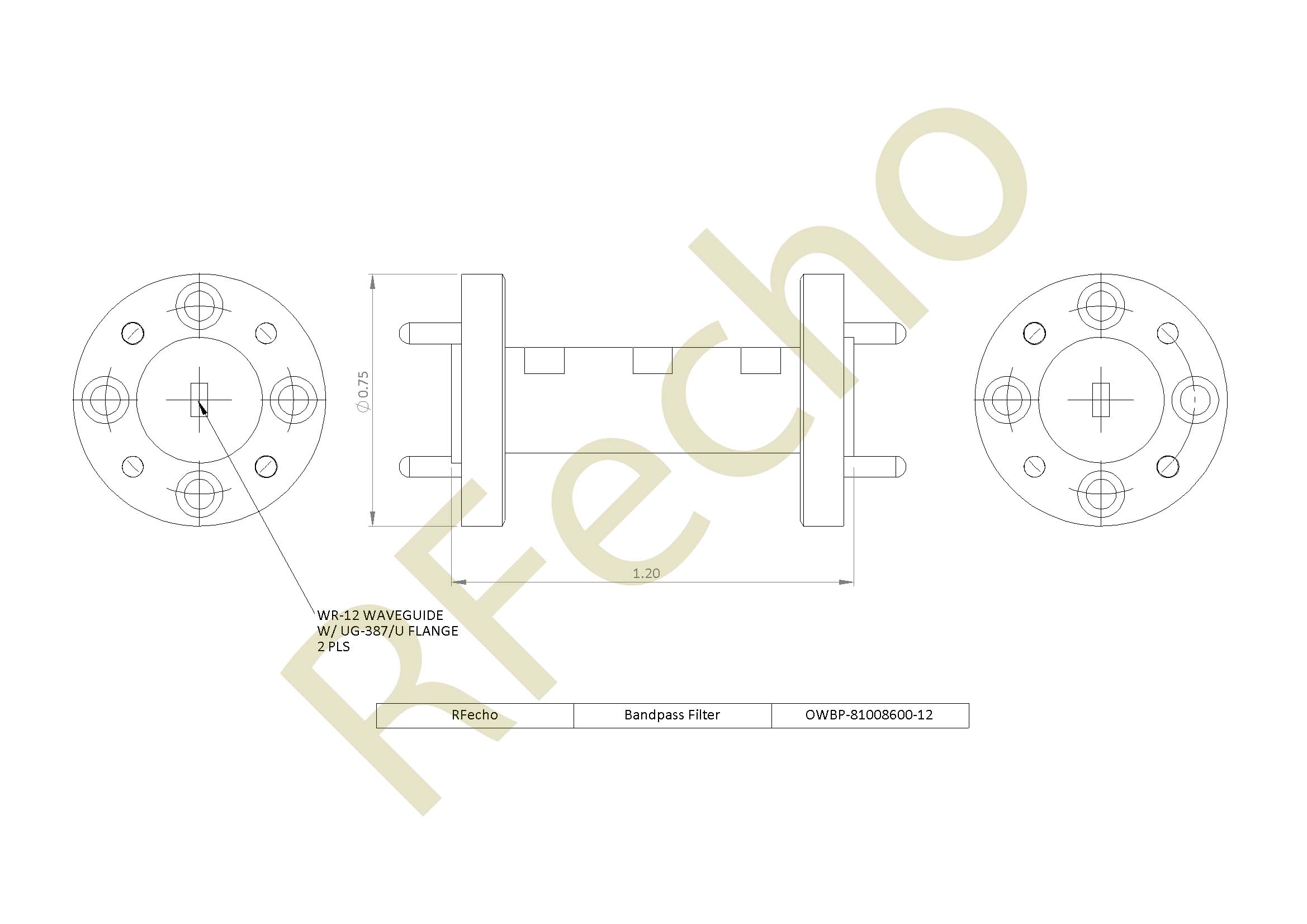

Outline

81GHz to 86GHz Waveguide Bandpass Filter Rejection Frequency 90GHz to 120GHz Passive Bandpass Filter

Plot

81GHz to 86GHz Waveguide Bandpass Filter Rejection Frequency 90GHz to 120GHz Passive Bandpass Filter

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

81

Max Pass Band Freq. (GHz)

86

Insertion Loss (dB)

2.0-2.5

Rejection (dB)

40-50

Max Rejection Freq. Lowside

68

Min Rejection Freq. Highside

90

Waveguide Port

WR-12
