RF Passive Bandpass Filter model OWBP-82508700-12 is E Band Waveguide Bandpass filter with a passband frequency from 82.5GHz to 87GHz and a rejection frequency 90GHz to 120GHz. Due to the waveguide cut off nature of E Band Waveguide Bandpass filter, the low side of this RF filter has rejection range of DC to 80GHz. Our RF Passive Bandpass Filter provides a nominal insertion loss of 2.5 to 3.0dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of E Band Waveguide Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Passive Bandpass Filter has VSWR 1.5:1 and operating temperature of -40C to -85C.
82.5GHz to 87GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 82.5GHz to 87GHz E Band Waveguide Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-82508700-12 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

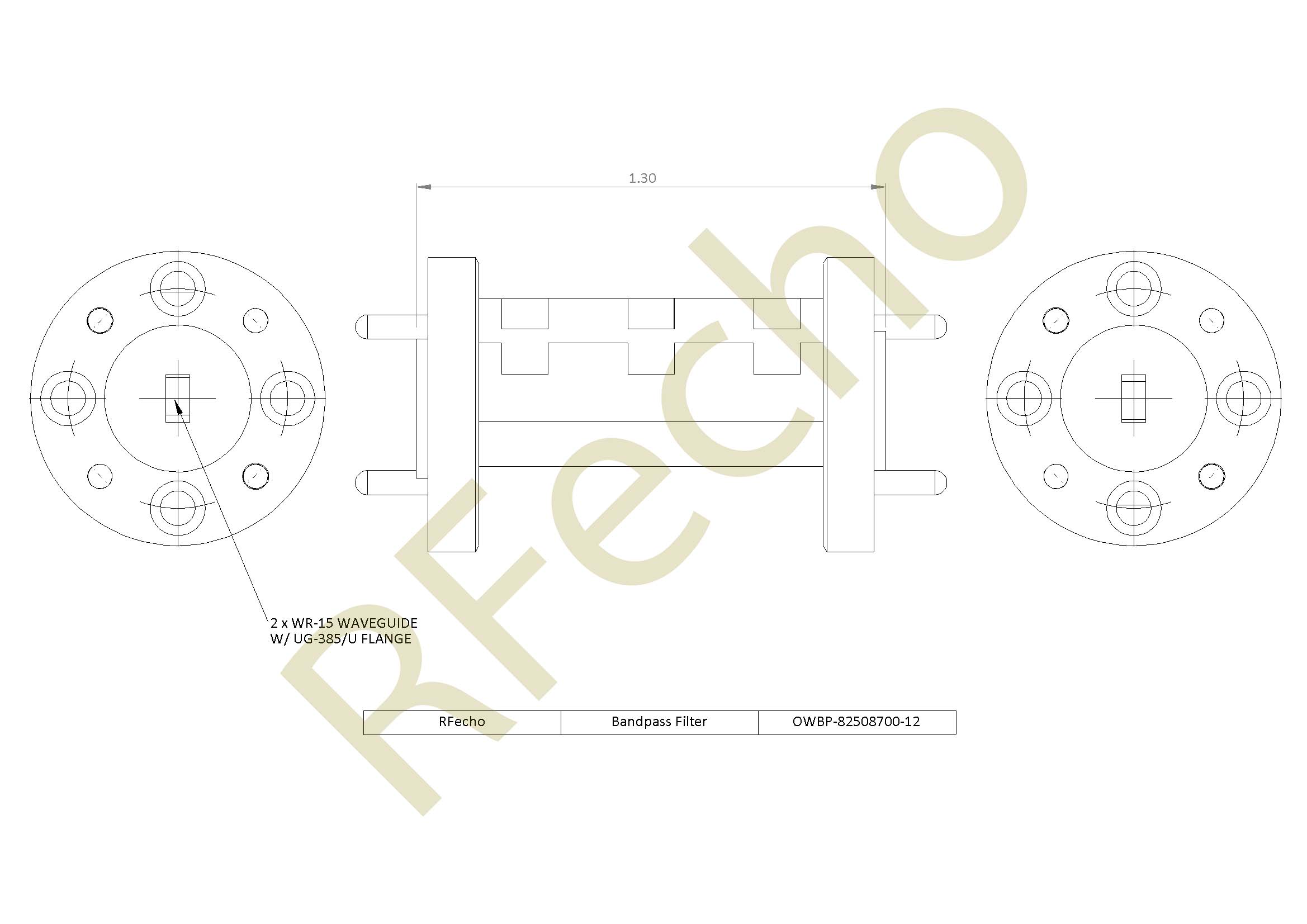

Outline

E Band Waveguide Bandpass Filter 82.5GHz to 87GHz RF Passive Bandpass Filter with Rejection Frequency 90GHz to 120GHz

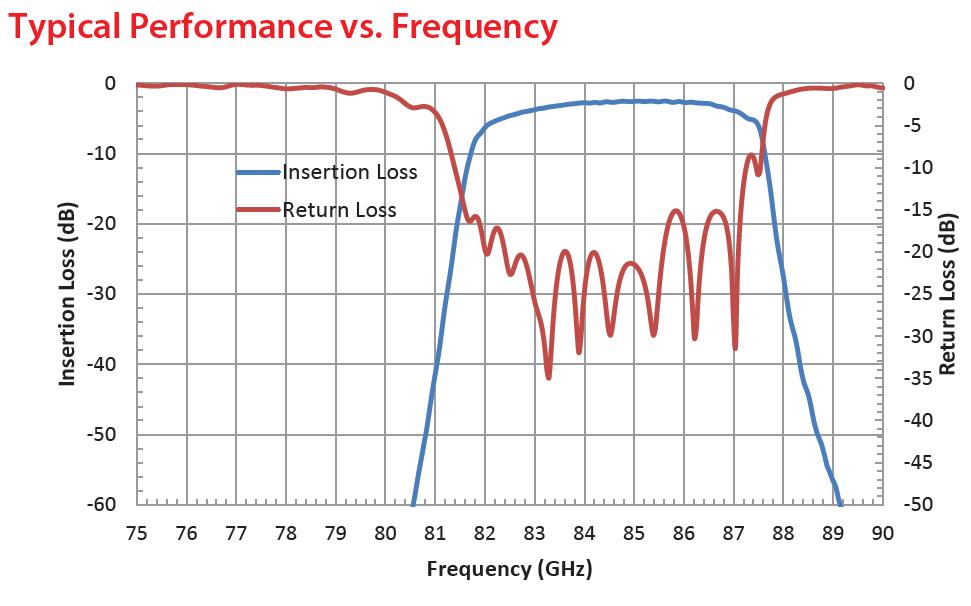

Plot

E Band Waveguide Bandpass Filter 82.5GHz to 87GHz RF Passive Bandpass Filter with Rejection Frequency 90GHz to 120GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

82.5

Max Pass Band Freq. (GHz)

87

Insertion Loss (dB)

2.5-3.0

Rejection (dB)

40

Max Rejection Freq. Lowside

80

Min Rejection Freq. Highside

90

Waveguide Port

WR-12
