Bandpass Waveguide RF Filter 93.2GHz to 95.2GHz W Band Waveguide Bandpass Filter Rejection Frequency 98.5GHz to 105GHz

Bandpass Waveguide RF Filter 93.2GHz to 95.2GHz W Band Waveguide Bandpass Filter Rejection Frequency 98.5GHz to 105GHz

0 out of 5

Bandpass Waveguide RF Filter model OWBP-93209520-10 is W Band Waveguide Bandpass filter with a passband frequency from 93.2GHz to 95.2GHz and a rejection frequency 98.5GHz to 105GHz. Due to the waveguide cut off nature of Bandpass Waveguide RF Filter, the low side of this RF filter has rejection range of DC to 91GHz. Our W Band Waveguide Bandpass Filter provides a nominal insertion loss of 2.5dB across its passband and a typical rejection of 50dB. Since the high end cutoff frequency of Bandpass Waveguide RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This W Band Waveguide Bandpass Filter has specification temperature of +25C and passband VSWR 1.5:1. 93.2GHz to 95.2GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 93.2GHz to 95.2GHz Bandpass Waveguide RF Filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-93209520-10 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

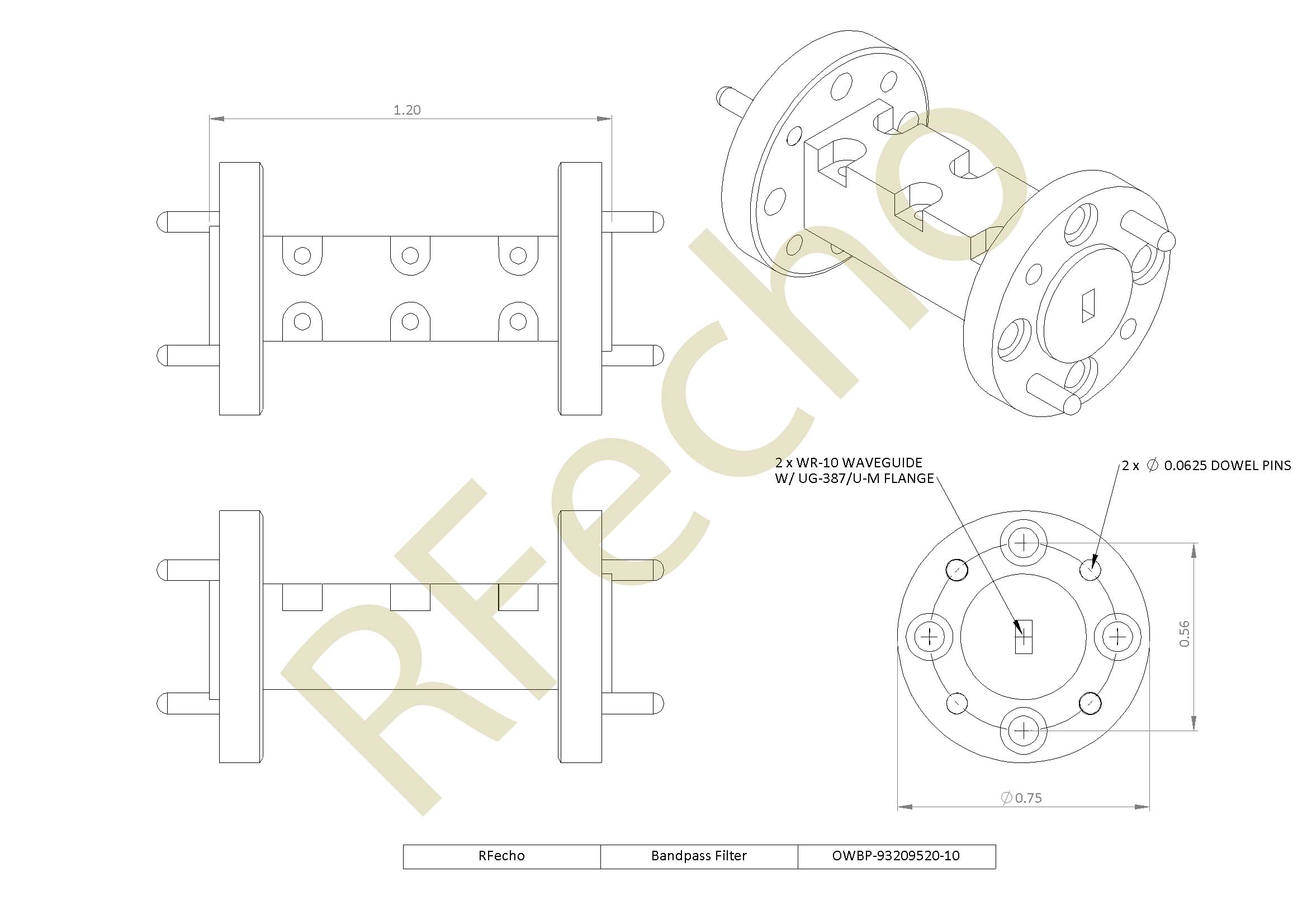

Outline

Bandpass Waveguide RF Filter 93.2GHz to 95.2GHz W Band Waveguide Bandpass Filter Rejection Frequency 98.5GHz to 105GHz

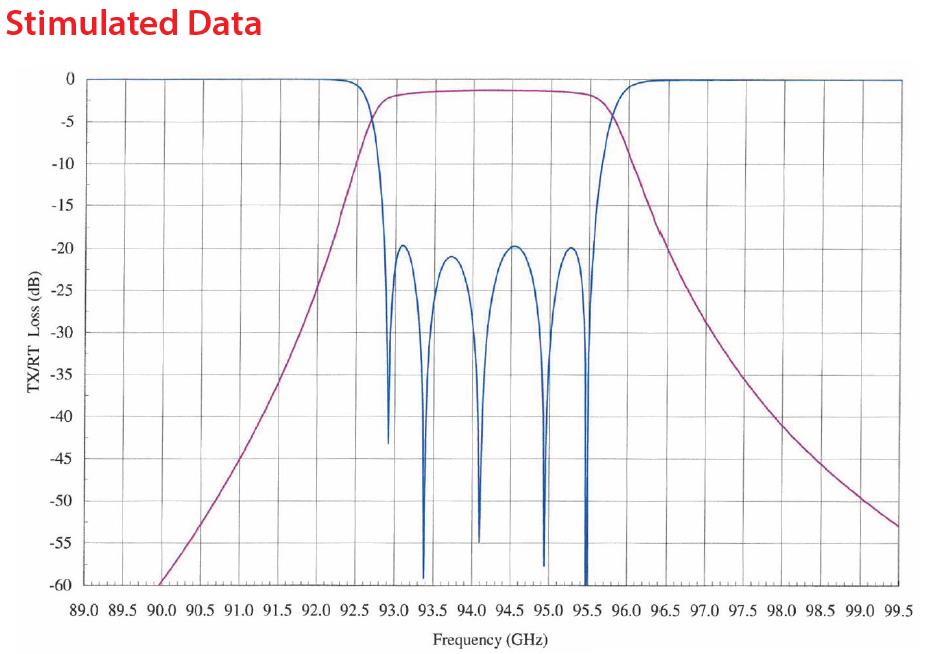

Plot

Bandpass Waveguide RF Filter 93.2GHz to 95.2GHz W Band Waveguide Bandpass Filter Rejection Frequency 98.5GHz to 105GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

93.2

Max Pass Band Freq. (GHz)

95.2

Insertion Loss (dB)

2.5

Rejection (dB)

40

Max Rejection Freq. Lowside

91

Min Rejection Freq. Highside

98.5

Waveguide Port

WR-10
