RF High Pass filter 104GHz to 200GHz model OWBP-1040020000-08 is an F band waveguide high pass filter with a passband frequency of 104GHz and higher and a rejection frequency from DC to 100GHz. RF High pass filter provides a nominal insertion loss of 2.5 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cut-off frequency of Waveguide High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. Waveguide High pass filter from RFecho is part of our extensive line of in-stock RF components for sale. Additional specs of this RF High Pass Filter can be found on the pdf file. Our 104GHz to 200GHz RF high pass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-1040020000-08 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

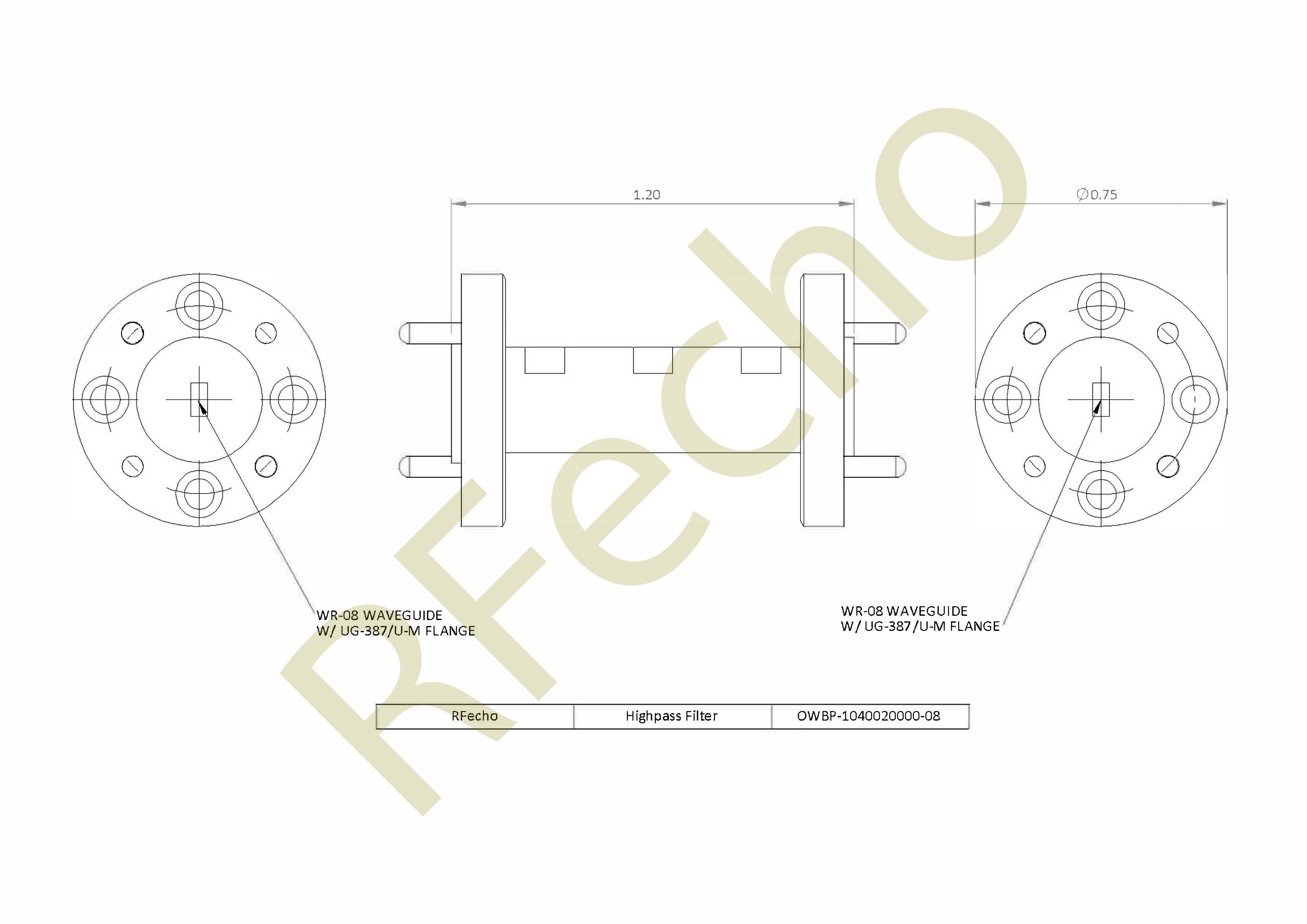

Outline

RF High Pass Filter 104GHz to 200GHz Waveguide High pass filter rejection 40dB DC-100GHz

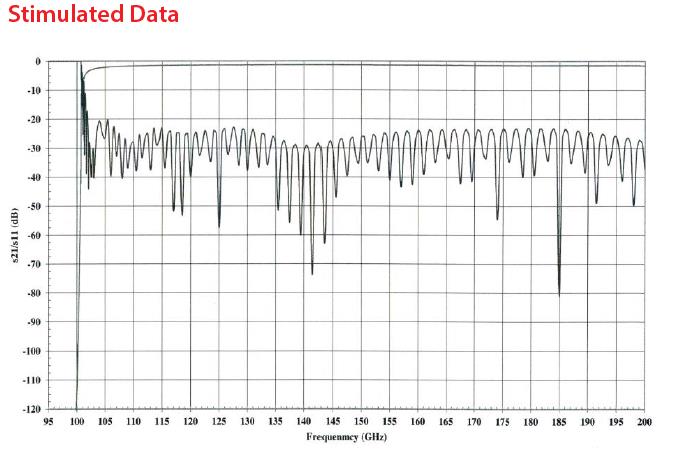

Plot

RF High Pass Filter 104GHz to 200GHz Waveguide High pass filter rejection 40dB DC-100GHz

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

104

Insertion Loss (dB)

2.5

Rejection (dB)

40

Min Rejection Freq. Highside

100

Waveguide Port

WR-08
