RF Filter Highpass OWBP-6000-12

RF Filter Highpass OWBP-6000-12

0 out of 5

Model OWBP-6000-12 is an E band waveguide highpass filter with a passband frequency of 60 GHz and higher and a rejection frequency from DC to 55 GHz.

The filter provides a nominal insertion loss of 1.0 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.

Description

PDF

Outline

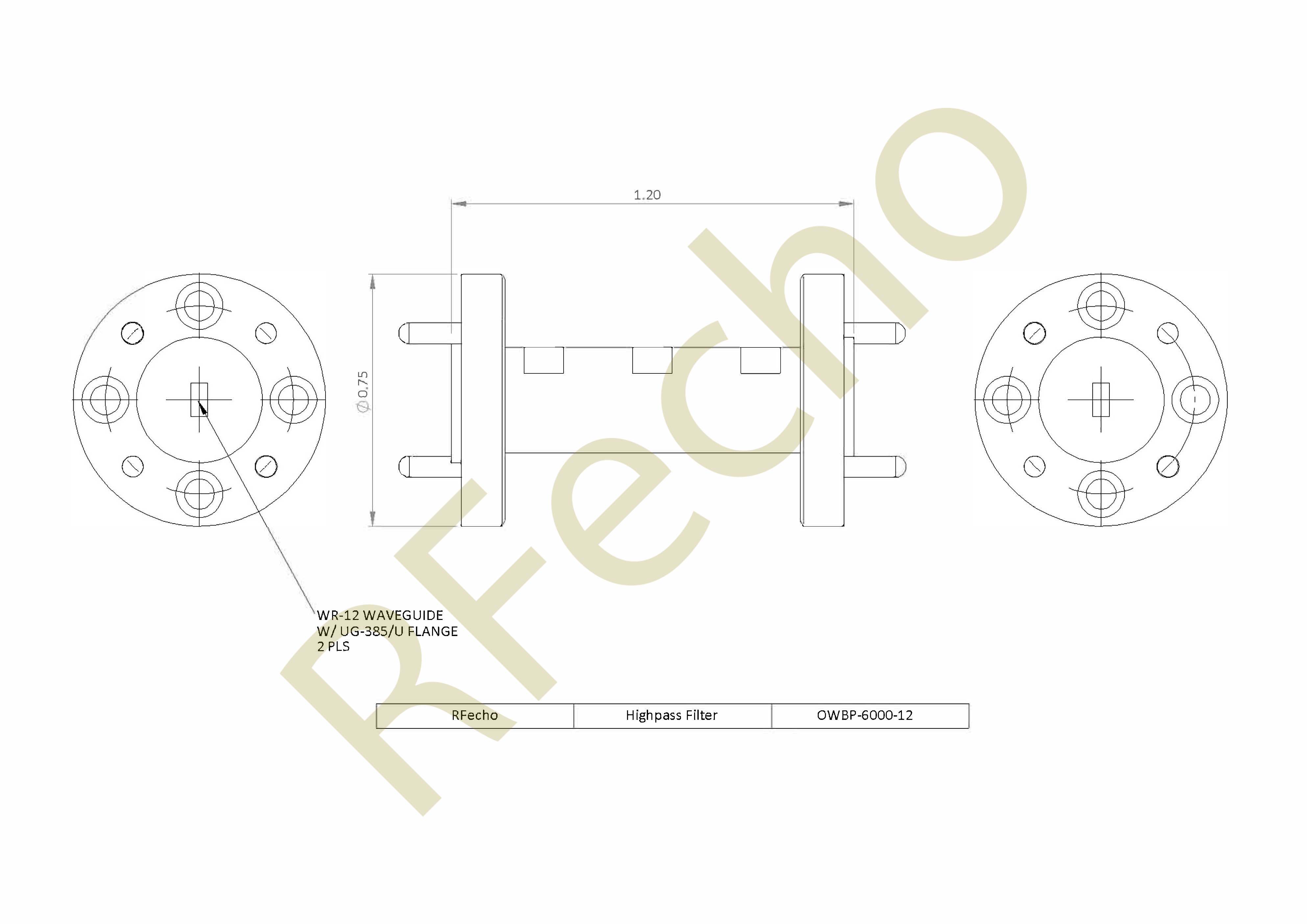

OWBP 6000 12 outline RF Filter Highpass OWBP-6000-12

Additional information

Filter Type

Min Pass Band Freq. (GHz)

Insertion Loss (dB)

Rejection (dB)

Min Rejection Freq. Highside

Waveguide Port
