RF Filter Highpass OWBP-6300-15

RF Filter Highpass OWBP-6300-15

Model OWBP-6300-15 is a V band waveguide highpass filter with a passband frequency of 63 GHz and higher and a rejection frequency from DC to 57 GHz.

The filter provides a nominal insertion loss of 1.0 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.

SKU: OWBP-6300-15 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

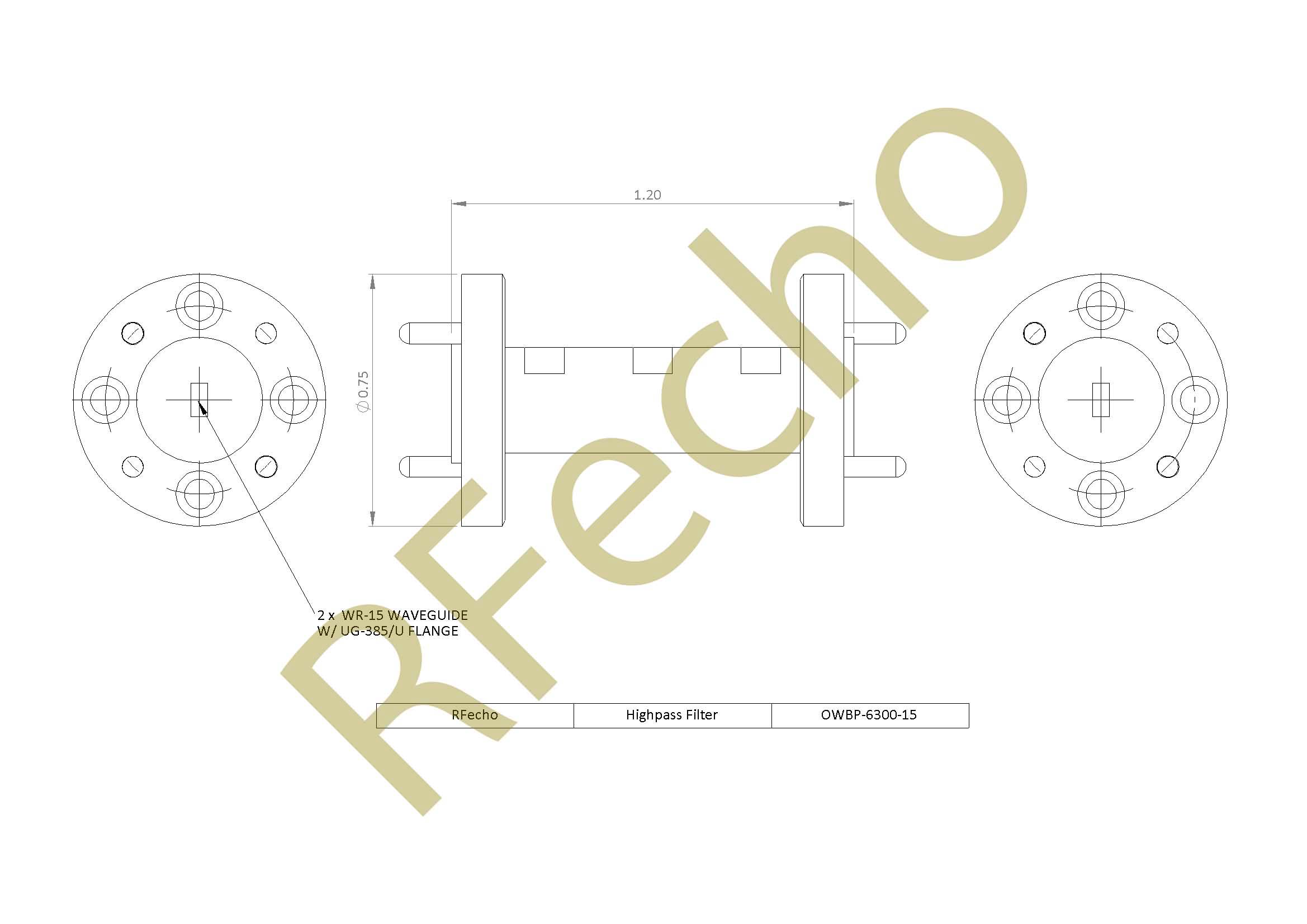

Outline

RF Filter Highpass OWBP-6300-15

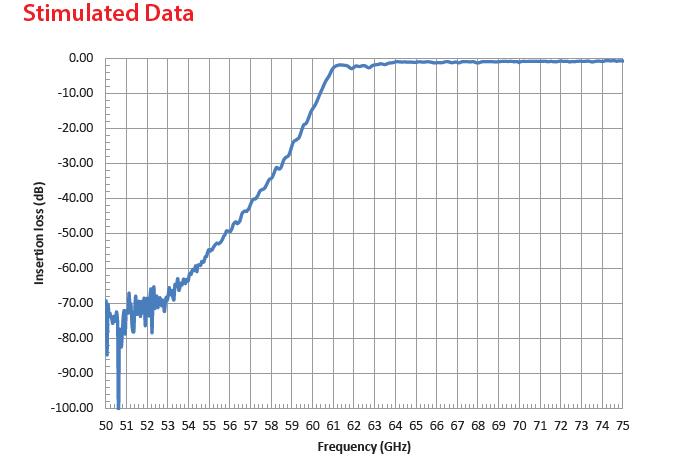

Plot

RF Filter Highpass OWBP-6300-15

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

63

Insertion Loss (dB)

1

Rejection (dB)

40

Min Rejection Freq. Highside

57

Waveguide Port

WR-15
