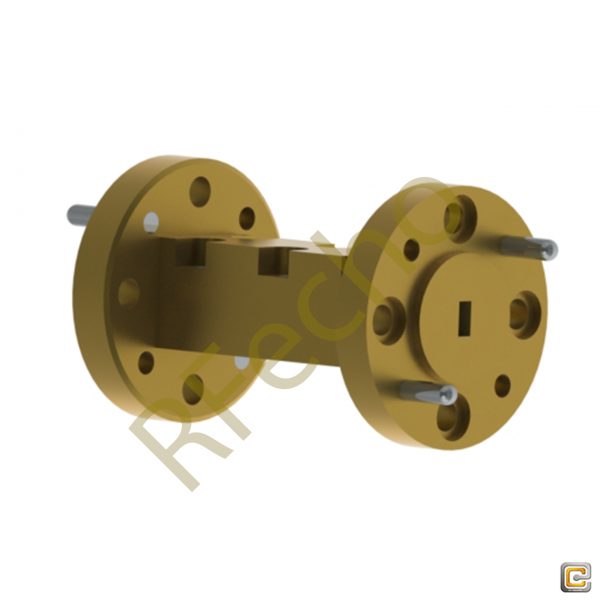

RF Microwave High Pass Filter 70GHz E Band Waveguide Filter rejection 40dB DC-66GHz

RF Microwave High Pass Filter 70GHz E Band Waveguide Filter rejection 40dB DC-66GHz

0 out of 5

RF Microwave High Pass Filter 70GHz Model OWBP-7000-12 is an E band waveguide filter with a passband frequency of 70GHz and higher and a rejection frequency from DC to 66 GHz. RF Microwave High pass filter provides a nominal insertion loss of 0.5 dB across its passband with a low ripple and a typical rejection of 40dB. Since the low end cut-off frequency of E Band Waveguide Filter can be changed by modifying the design, custom designs can be offered under different model numbers. E Band Waveguide filter from RFecho is part of our extensive line of in-stock RF components for sale. Additional specs of this RF Microwave High Pass Filter can be found on the pdf file. Our 70GHz RF Microwave high pass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-7000-12 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

Outline

RF Microwave High Pass Filter 70GHz E Band Waveguide Filter rejection 40dB DC-66GHz

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

70

Insertion Loss (dB)

0.5

Rejection (dB)

40

Min Rejection Freq. Highside

66

Waveguide Port

WR-12
