RF Filter Highpass OWBP-7500-10

RF Filter Highpass OWBP-7500-10

0 out of 5

Model OWBP-7500-10 is a W band waveguide highpass filter with a passband frequency of 75 GHz and higher and a rejection frequency from DC to 70 GHz.

The filter provides a nominal insertion loss of 1.0 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.

SKU: OWBP-7500-10 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

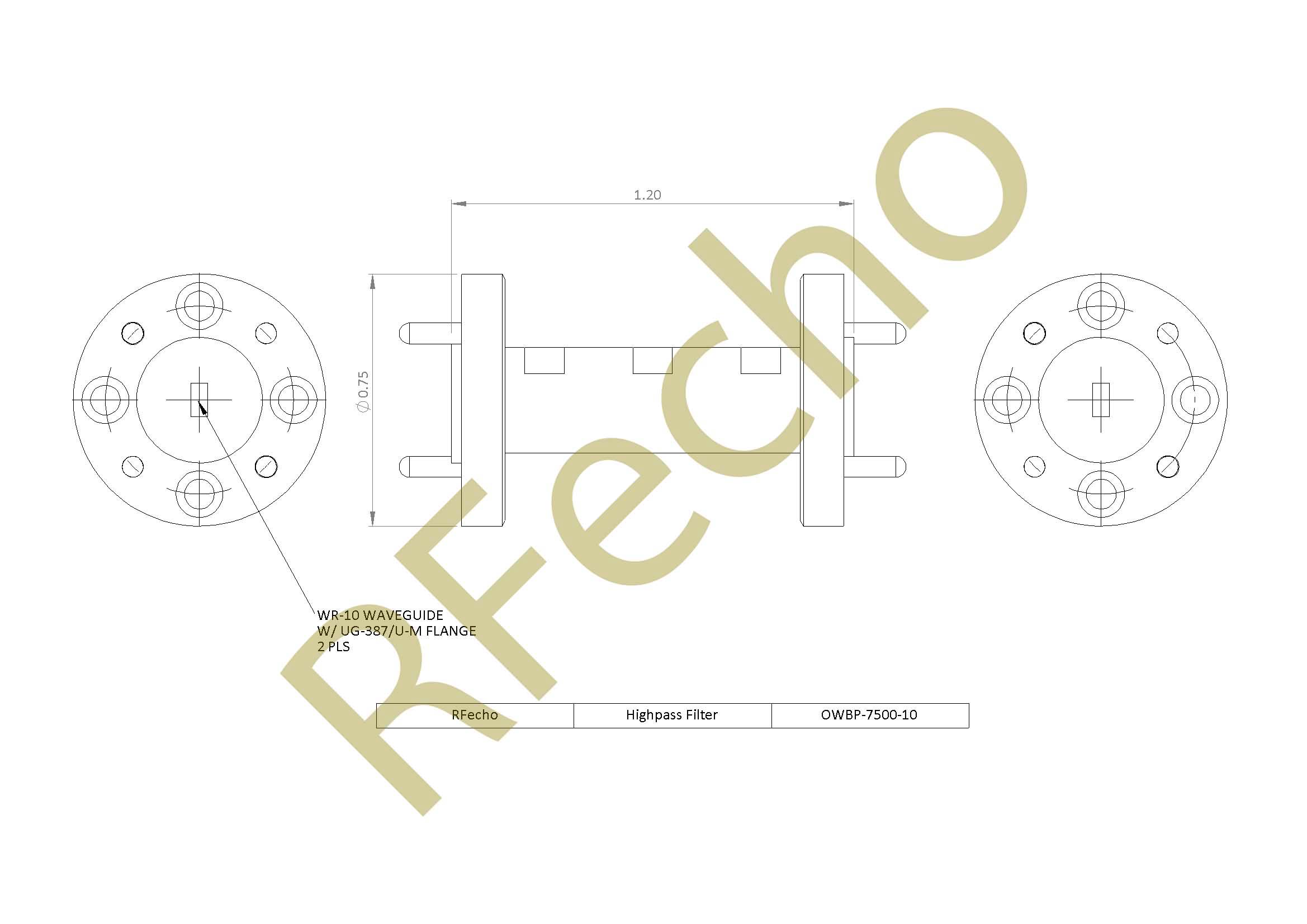

Outline

RF Filter Highpass OWBP-7500-10

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

75

Insertion Loss (dB)

1

Rejection (dB)

40

Min Rejection Freq. Highside

70

Waveguide Port

WR-10
