Our 92GHz RF High Pass Filter Model OWBP-9200-10 is an W band waveguide High Pass filter with a passband frequency of 92GHz and higher and a rejection frequency from DC to 86GHz. Our 92GHz RF High Pass Filter provides a nominal insertion loss of 1dB across its passband with a low ripple and a typical rejection of 40dB. Since the low end cut-off frequency of our 92GHz RF High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. W Band Waveguide high Pass Filter from RFecho is part of our extensive line of in-stock RF components for sale. Additional specs of this W Band Waveguide high Pass Filter can be found on the pdf file. Our 92GHz RF High Pass Filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-9200-10 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

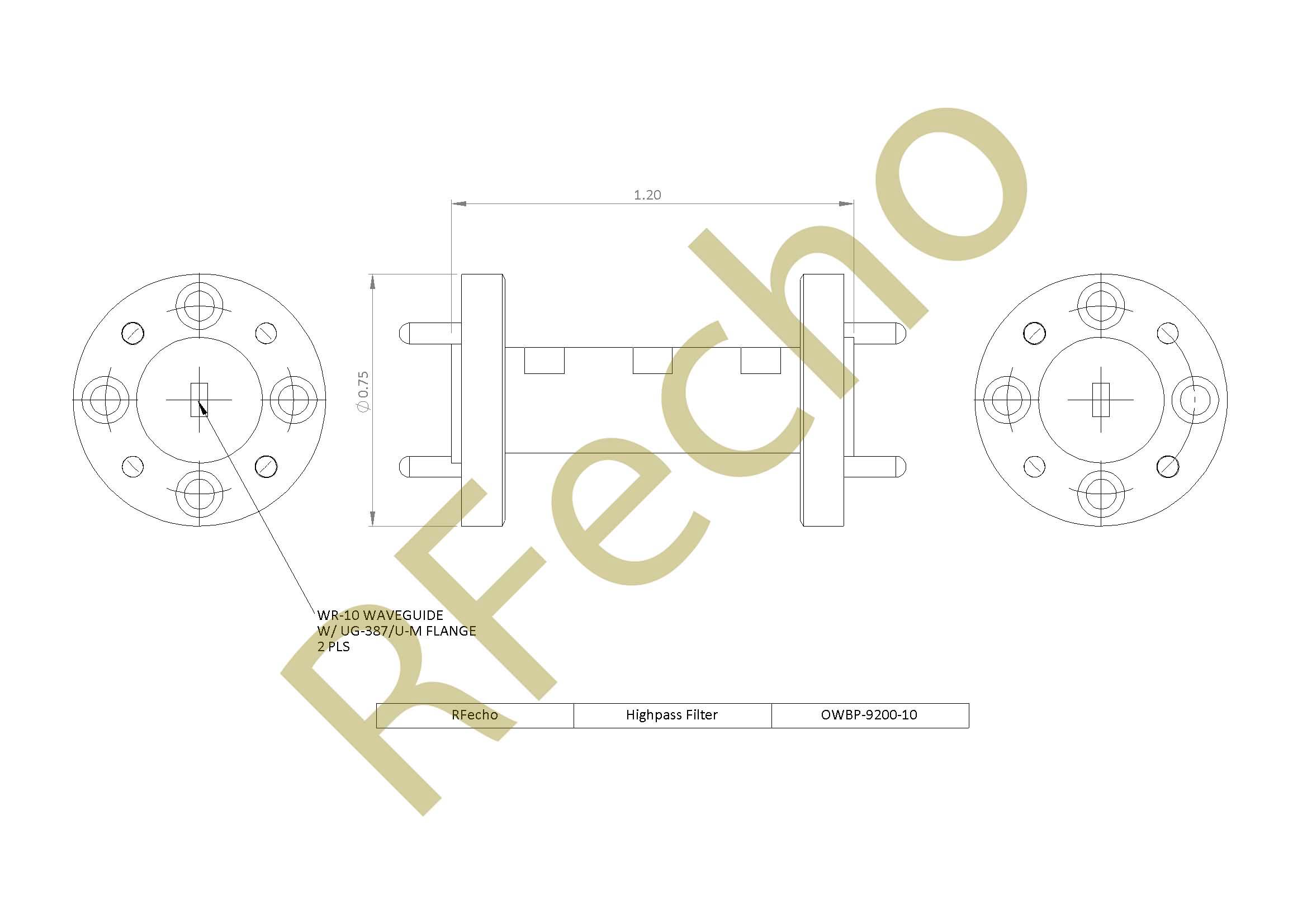

Outline

92GHz RF High Pass Filter rejection 40dB DC-86GHz W Band Waveguide High Pass Filter

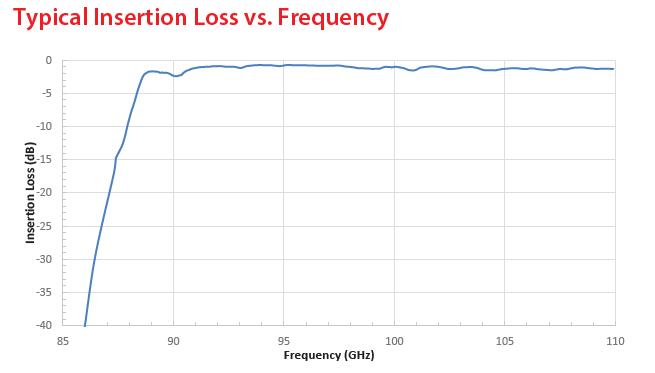

Plot

92GHz RF High Pass Filter rejection 40dB DC-86GHz W Band Waveguide High Pass Filter

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

92

Insertion Loss (dB)

1

Rejection (dB)

40

Min Rejection Freq. Highside

86

Waveguide Port

WR-10
