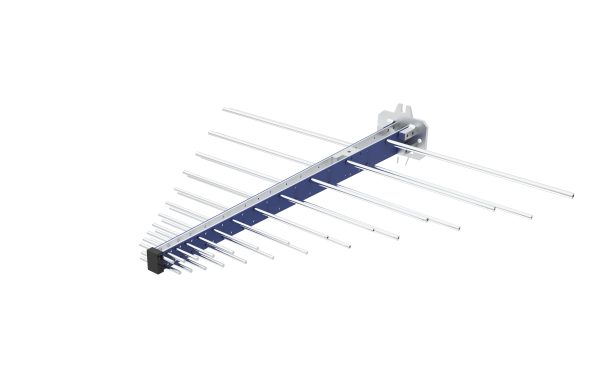

RFECHO Log-Periodic AntennaOLP-213
The OLP-213 is a versatile, high-performance log-periodic antenna featuring excellent broadband characteristics, making it perfectly suited for various application, including measurements, monitoring and transmitting. With its broadband characteristics and virtually frequency-independent radiation pattern, this antenna can effectively cover an extensive frequency range from 200 MHz to 1 .3GHz. Additionally, its durable construction makes it suitable for both mobile and stationary operations across multiple industries. The OLP-213 is equipped with individual calibrations in line with ANSIC 63.5,CISPR16-1-6 and SAEARP 958, and it also comes with an adapter for easy installation on tripods. Moreover, it also offers an accredited calibration to ensure the antenna meets the highest standards of quality.
- Description
Description
|
|
RFECHO Log-Periodic AntennaOLP-213 |
|
OLP213 |
|
The OLP-213 is a versatile, high-performance log-periodic antenna featuring excellent broadband characteristics, making it perfectly suited for various application, including measurements, monitoring and transmitting. With its broadband characteristics and virtually frequency-independent radiation pattern, this antenna can effectively cover an extensive frequency range from 200 MHz to 1 .3GHz. Additionally, its durable construction makes it suitable for both mobile and stationary operations across multiple industries. The OLP-213 is equipped with individual calibrations in line with ANSIC 63.5,CISPR16-1-6 and SAEARP 958, and it also comes with an adapter for easy installation on tripods. Moreover, it also offers an accredited calibration to ensure the antenna meets the highest standards of quality. |
|
Property |
Value |
Frequency Range |
200MHz∼1.3GHz |
Polarization |
linear |
Max input Power(at+20°C) |
1500W to 600W |
Connector |
N female |
Input impedance |
50 Ohm |
Gain(dBi) |
≥ 6 dBi (typ.) |
VSWR |
< 2 (typ.) |
Features |
|
Excellent broadband characteristics |
|
Accredited calibration available on request |
|
Antenna gain approximately constant over the whole frequency range |
|
Applications |
|
Broadband signal transmission |
|
Mobile signal monitoring |
|
Accurate EMI measurements |
