6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna OLP-00240-B

6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna OLP-00240-B

0 out of 5

The OCEAN MICROWAVE Bilogical Antenna is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 4000 MHz.

OLP antenna offering a large number of dipole elements with frequency range from 25MHz to 4 GHz including the most common RF sources like GSM,5G, Wifietc..

SKU: OLP-00240-B Category: Log Periodic Antenna

Description

SPEC

 Bilogical Antenna

6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna

OLP-00240-B

The OCEAN MICROWAVE Bilogical Antenna is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 4000 MHz.

OLP antenna offering a large number of dipole elements with frequency range from 25MHz to 4 GHz including the most common RF sources like GSM,5G, Wifietc..

Each antenna goes through rigorous testing in our laboratories before dispatch,Allantennas are developed, individually produced and calibrated。

Property

Value

Min. Frequency (GHz)

0.025

Max. Frequency (GHz)

4

Gain(dBi)

6

Impedance (?)

50Ω

Max Radiated Field

100 V/m

Connection Type

N-Type, female

Mounting Base

¼- 20 Thread,female

Features

HybridLog Periodic – Biconical Antenna

Wide Frequency Range of 25 MHz – 4000 MHz

Receive and Transmit

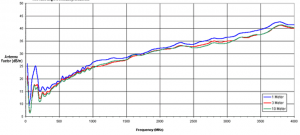

Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)Rugged Construction

Can be used in the lab

for open-field application

Suitable for field-strength and EMC measurements due to high precision

Compact and sturdy design

Can be used in the lab and for open-field application

Applications

GSM

Wifietc

DECT?Digital Enhanced Cordless Telecommunications

5G

PDF

6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna  OLP-00240-B6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna  OLP-00240-B

Outline

6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna  OLP-00240-B

Additional information

Weight 2.04 kg
Dimensions 97.8 × 97.3 × 56.4 cm
Min. Frequency (GHz)

0.025

Max. Frequency (GHz)

4

Gain (dBi)

-28 – 7

Impedance (Ω)

50

MaximumContinuous Power

400 Watts

Max Radiated Field

100 V/m

Connector

N-Type, female

Mounting Base

¼- 20 Thread,female
