Dual Polarized Horn Antenna Table View

Dual polarized horn antennas (quad ridged horn antenna) are offered as both standard and custom models with rectangular waveguide borders for both plane and vertical ports. Dual polarized horn antennas support the linear polarized waveforms.

Dual polarized horn antennas offer frequencies of 1GHz to 3GHz, 2GHz to 6GH-z, 6GHz to 18GHz, 18GHz to 40GHz 22GHz to 44GHz with a nominal gain of 8-20dBi. The impedance of 50 Ohms. In Dual polarized horn antennas connections, the type is 2.92mm Connectors,  SMA Connectors, or N connectors.



Dual Polarized Horn Antenna
ImageSkuMin. Frequency (GHz)Max. Frequency (GHz)Min. Gain (dBi)Max. Gain (dBi)Continuous Power (W) (Max.)Connection TypeCross Polar Isolation (dB)

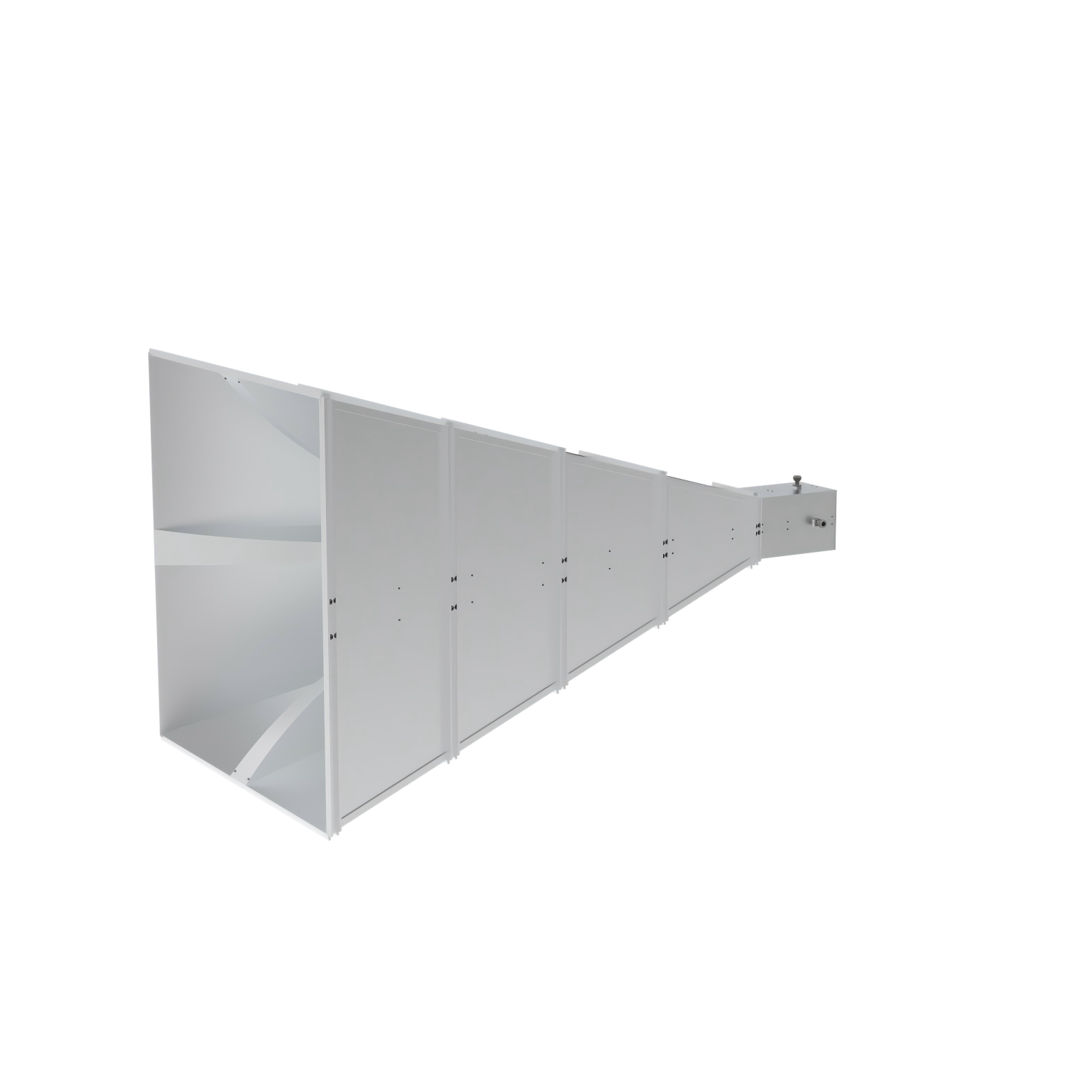

1 GHz to 2 GHz, 14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 SMA Connectors, Dual Polarized Horn Antenna

ODPA-1020121417502 SMA Connectors>30

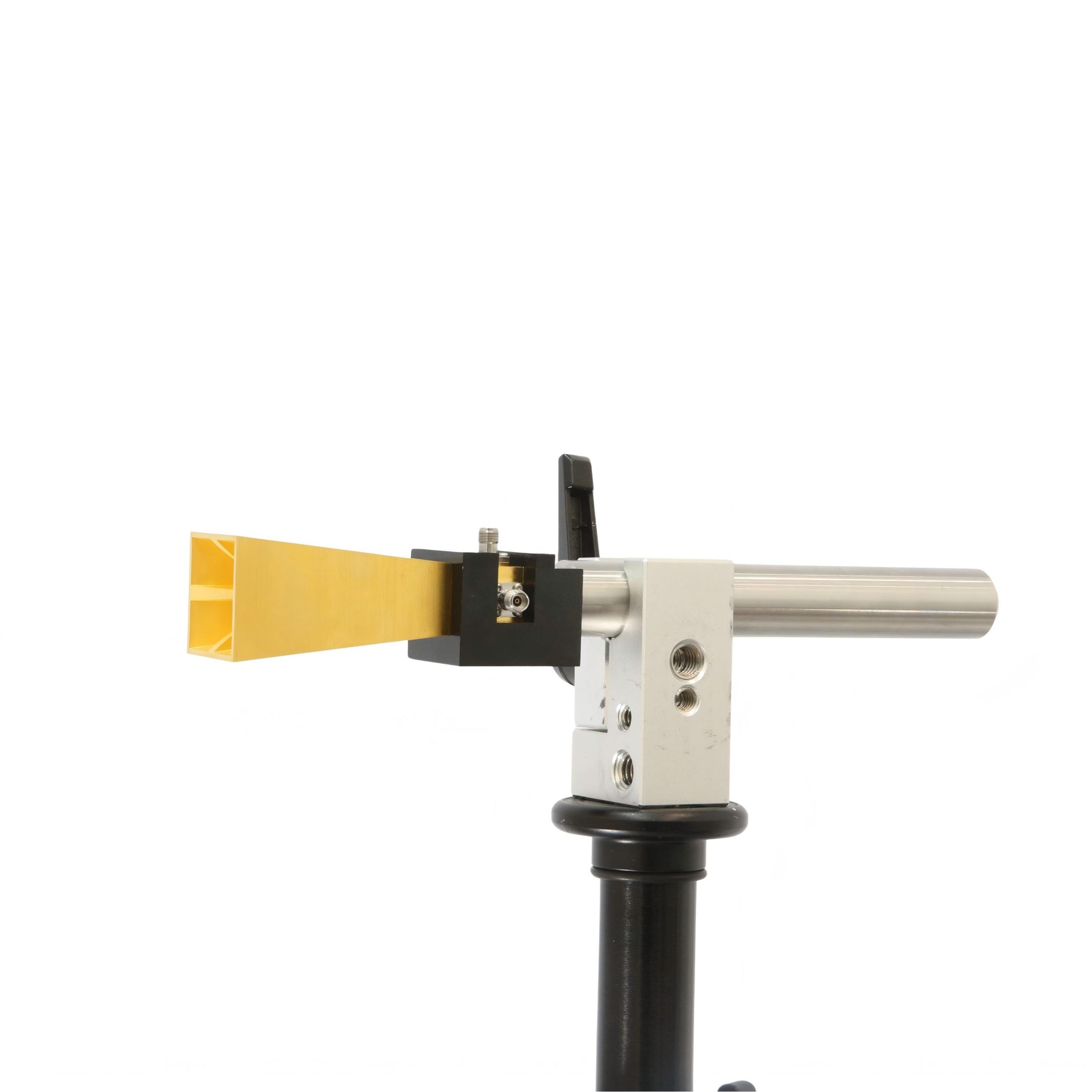

18 GHz to 40 GHz 13-18dBi gain ,30 dB Isolation, K band and Ka band, SMA Connectors, Dual Polarized Horn Antenna

ODPA-180400-30mm1840131850SMA Connectors>30

18 GHz to 40 GHz, 11 dBi to 17 dBi Gain,Dual Polarized Horn Antenna ,30 dB Isolation, K band to Ka band, 2.92mm Connectors

ODPA-180400-20mm18401117502 SMA Connectors>30

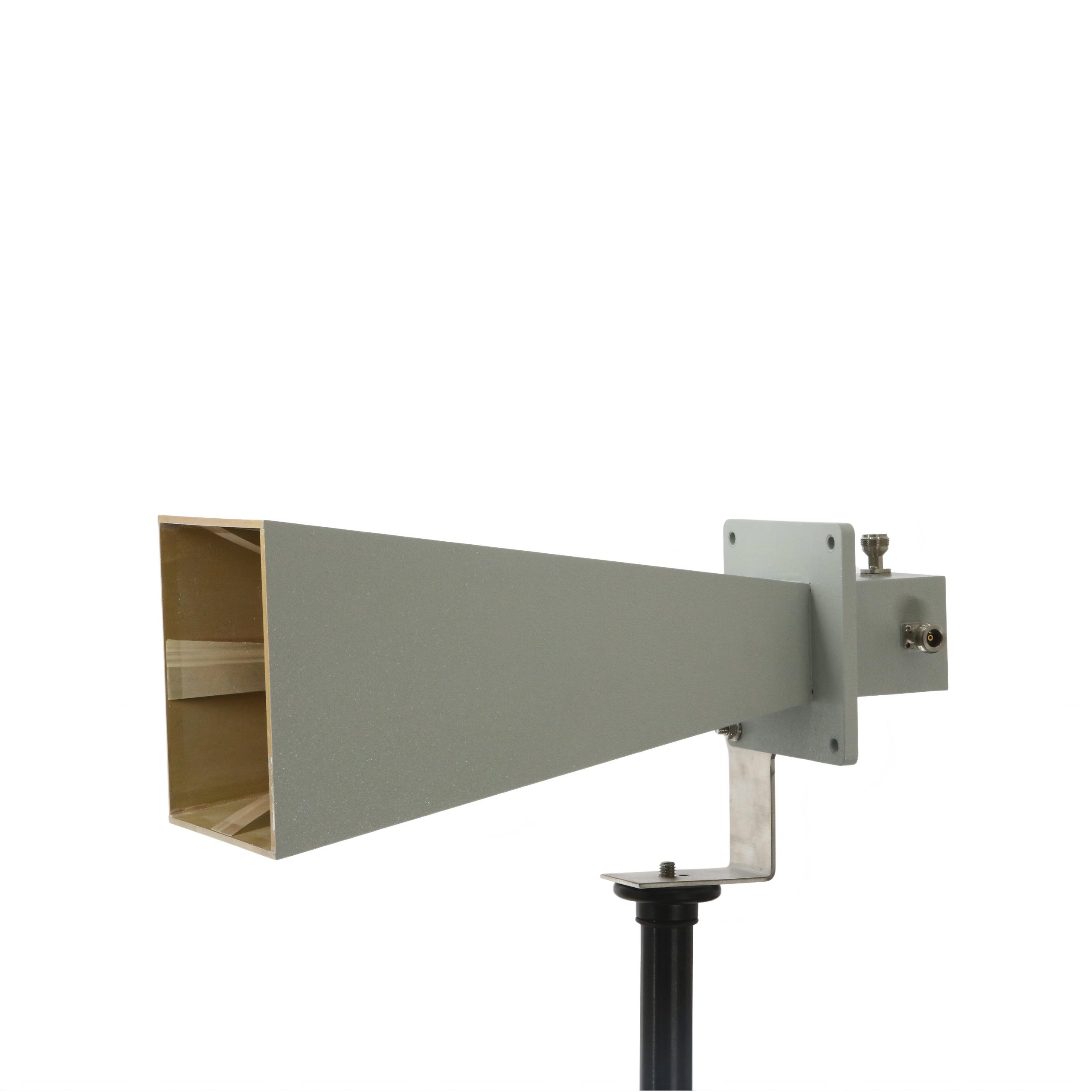

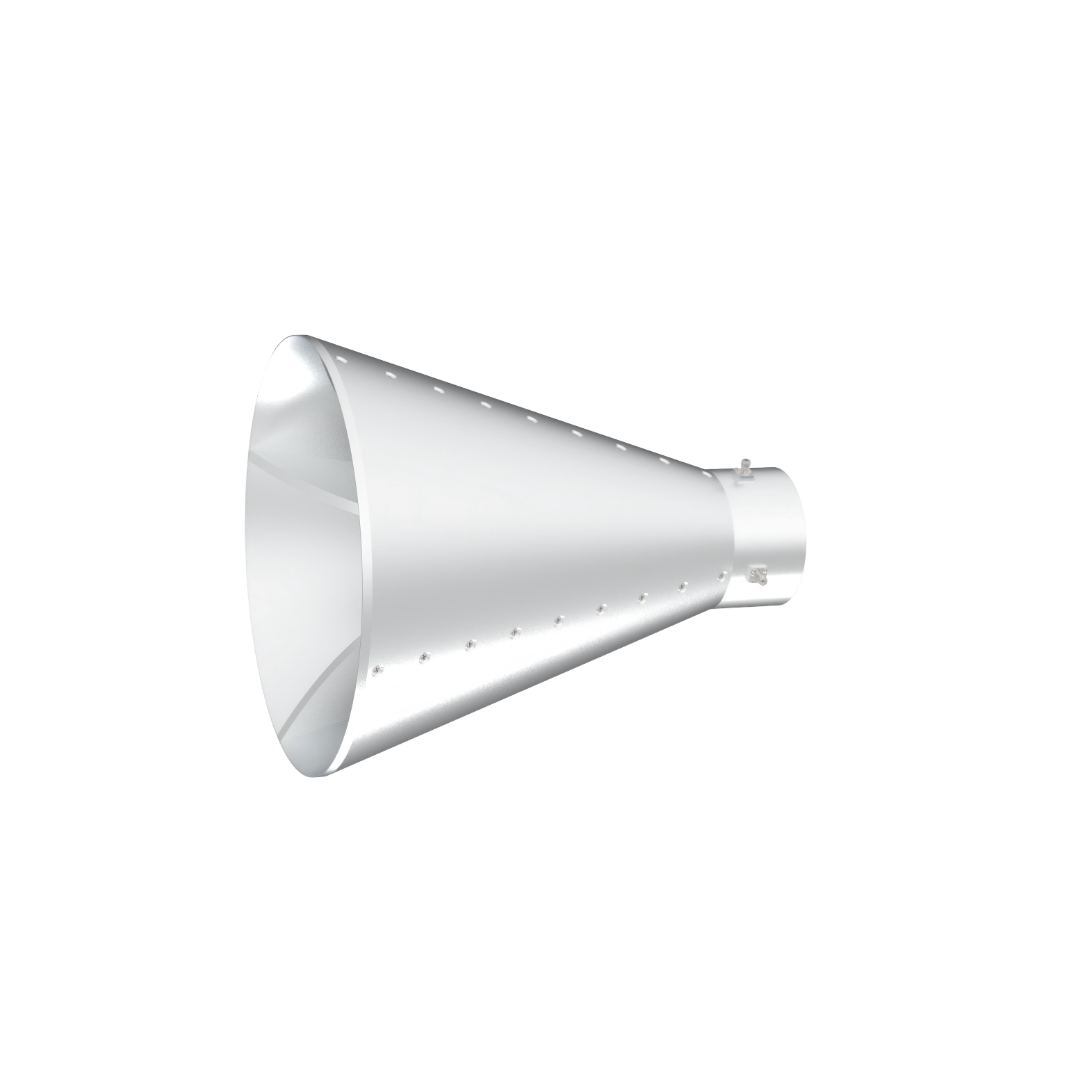

2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn Antenna

ODPA-2060261515502 SMA Connectors>30

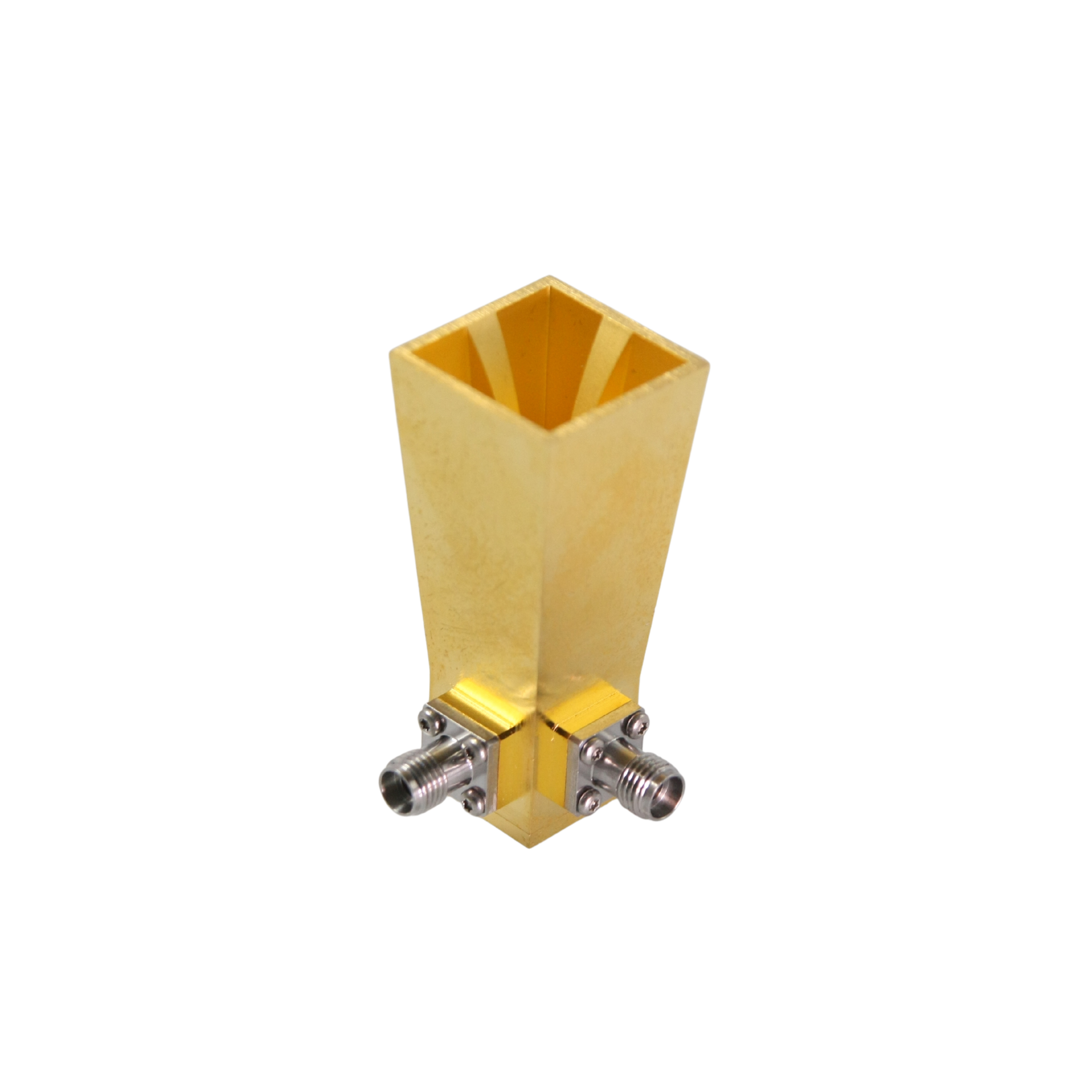

22 GHz to 44 GHz, 15 dBi to 20 dBi Gain, Dual Polarized Horn Antenna,30 dB Isolation, K band, Ka band, Q band and U band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

ODPA-22044022441520502 -2.92mm Connectors>30

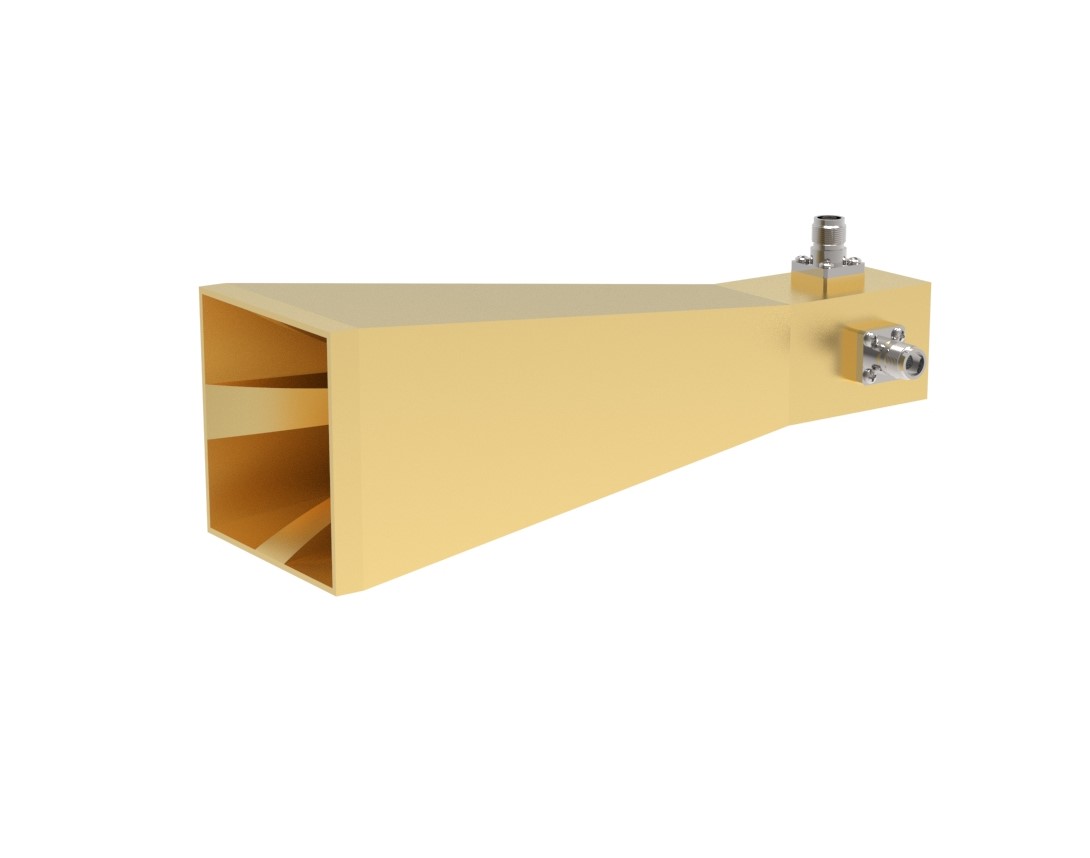

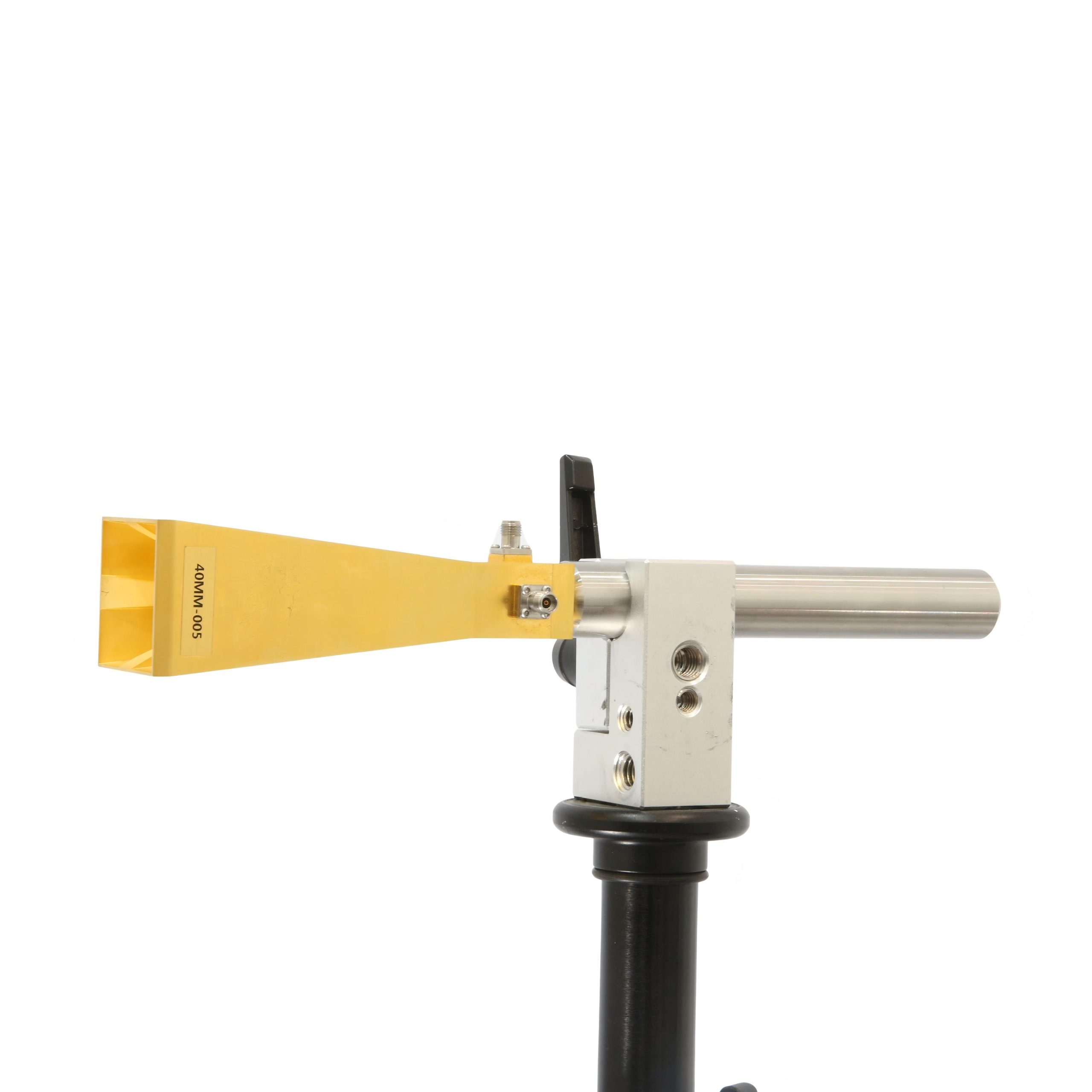

6 GHz to 18 GHz, 12 dBi to 17 dBi Gain,30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

ODPA-60180-40mm6181217502 -2.92mm Connectors>30

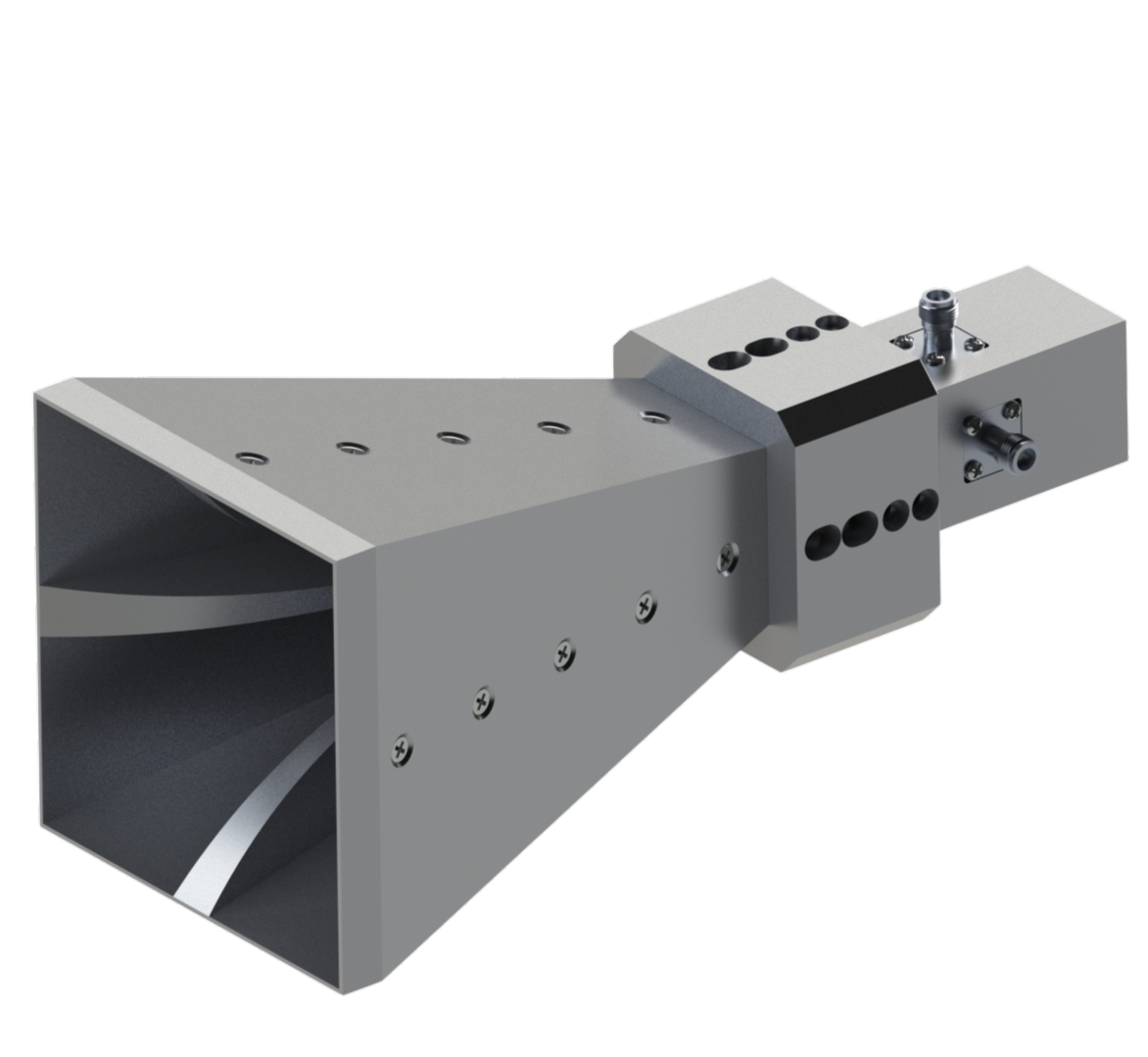

6 GHz to 18 GHz,13 dBi to 20 dBi Gain,  30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

ODPA-601806181320502 -2.92mm Connectors>30
