Broadband dual ridged horn antenna
The Broadband dual ridged horn antenna presents a very low VSWR in its minor frequency range and very broad bandwidth. The increasing gain with frequency helps to compensate for cable losses. This horn antenna only supports linear polarization and can be used to receiving and transmitting applications.
The Broadband dual ridged horn antenna covers the frequency range from 0.1GHz to 40GHz with the gain from 4 dBi to 20 dBi VSWR is <2.7Max and a Single Linear Polarization.
The antenna is appropriate for the test of wireless and telecom communication antennas. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.
| Image | Sku | Min. Frequency (GHz) | Max. Frequency (GHz) | Gain (dBi) | Polarization | Impedance (Ω) |
|---|---|---|---|---|---|---|
| OBH-1020-15 | 1 | 2 | 15 | Linear | 50 | |
| OBH-08120 | 0.8 | 12 | 6.4-15.8 | Single Linear | 50 | |
| OBH-08180 | 0.8 | 18 | 10.5 | Single Linear | 50 | |
| OBH-880 | 0.8 | 8 | 10.5 | Single Linear | 50 | |

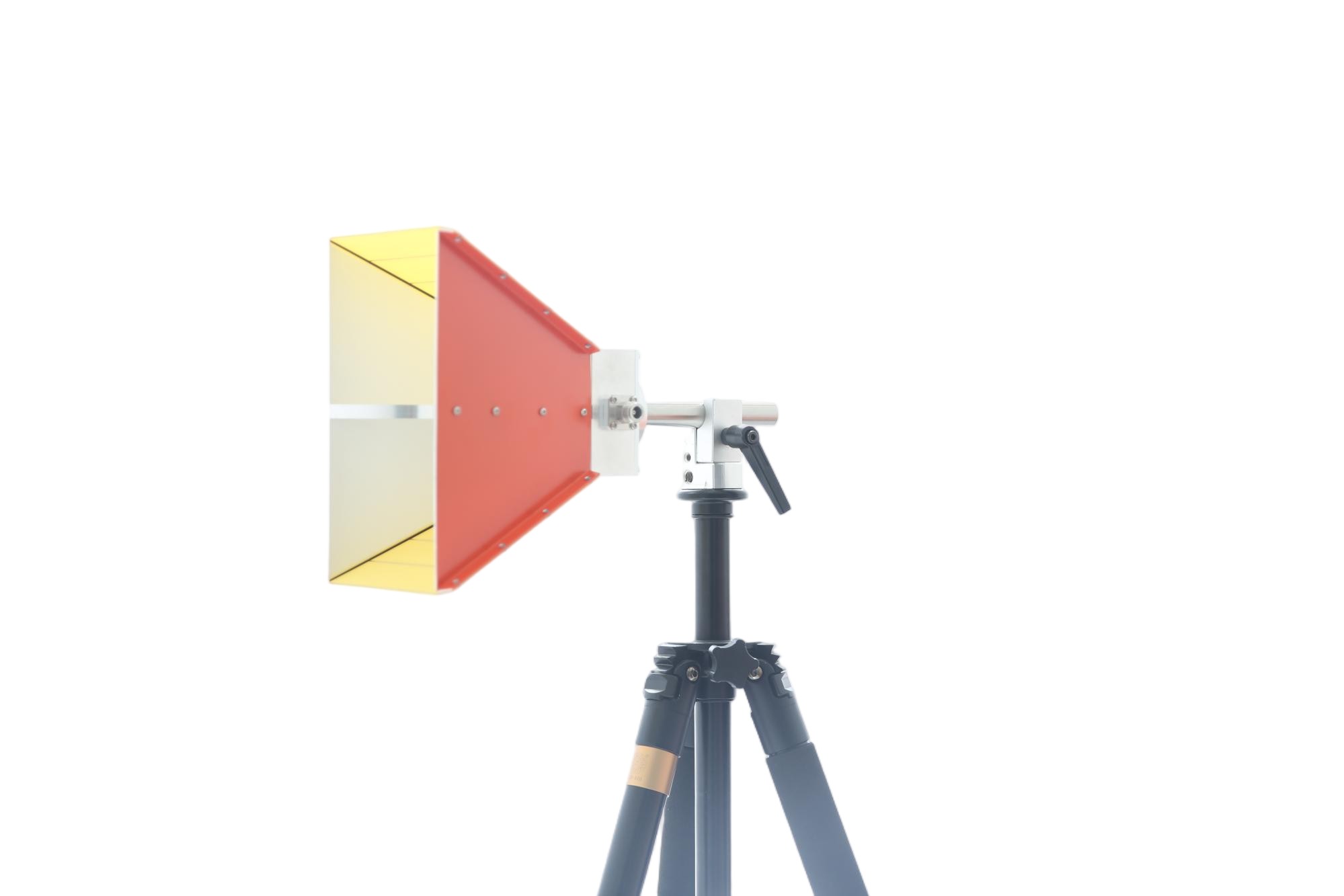

| OBH-10180 | 1 | 18 | 10.5 | Single Linear | 50 | |

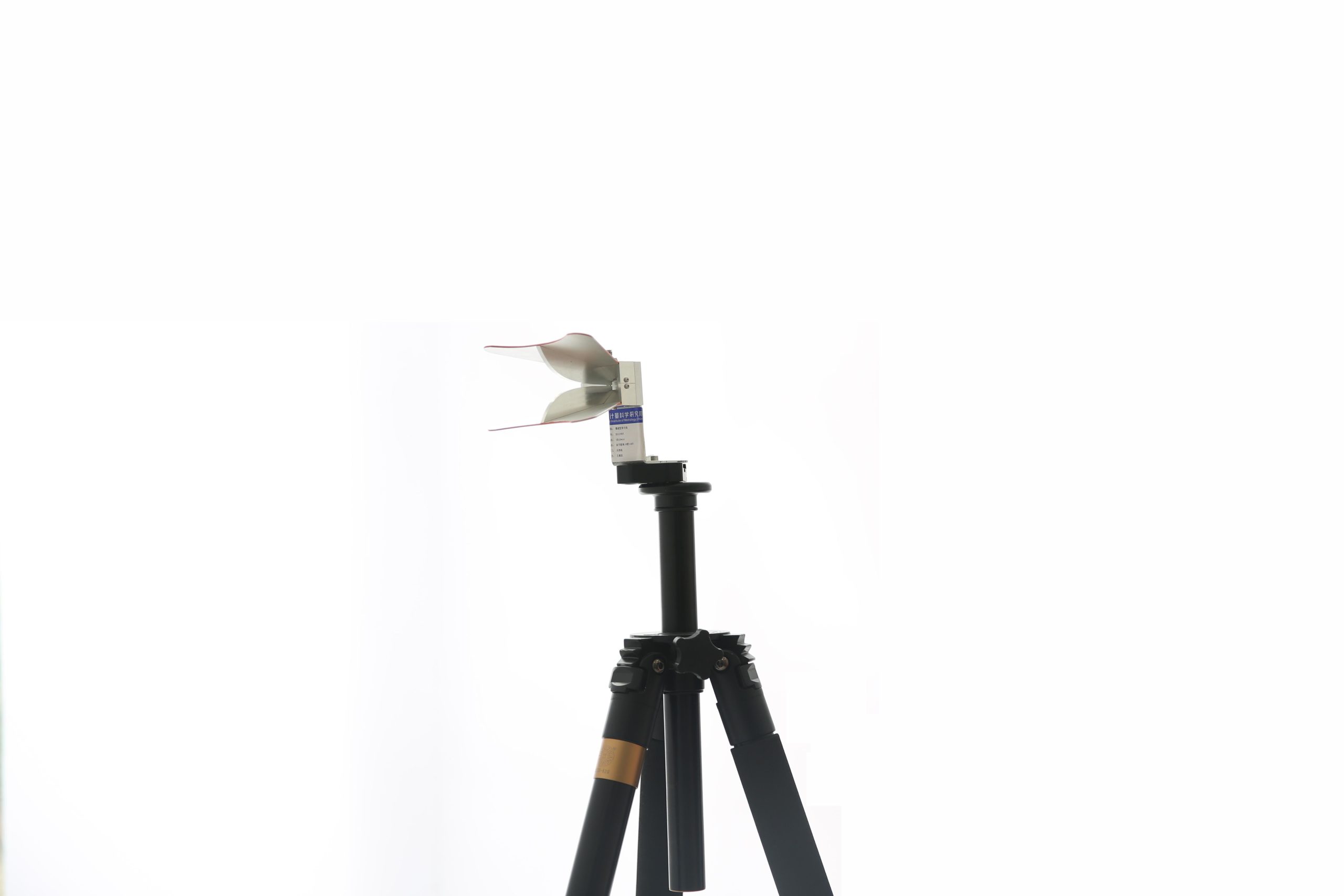

| OBH-100400 | 10 | 40 | 10.5 | Single Linear | 50 | |

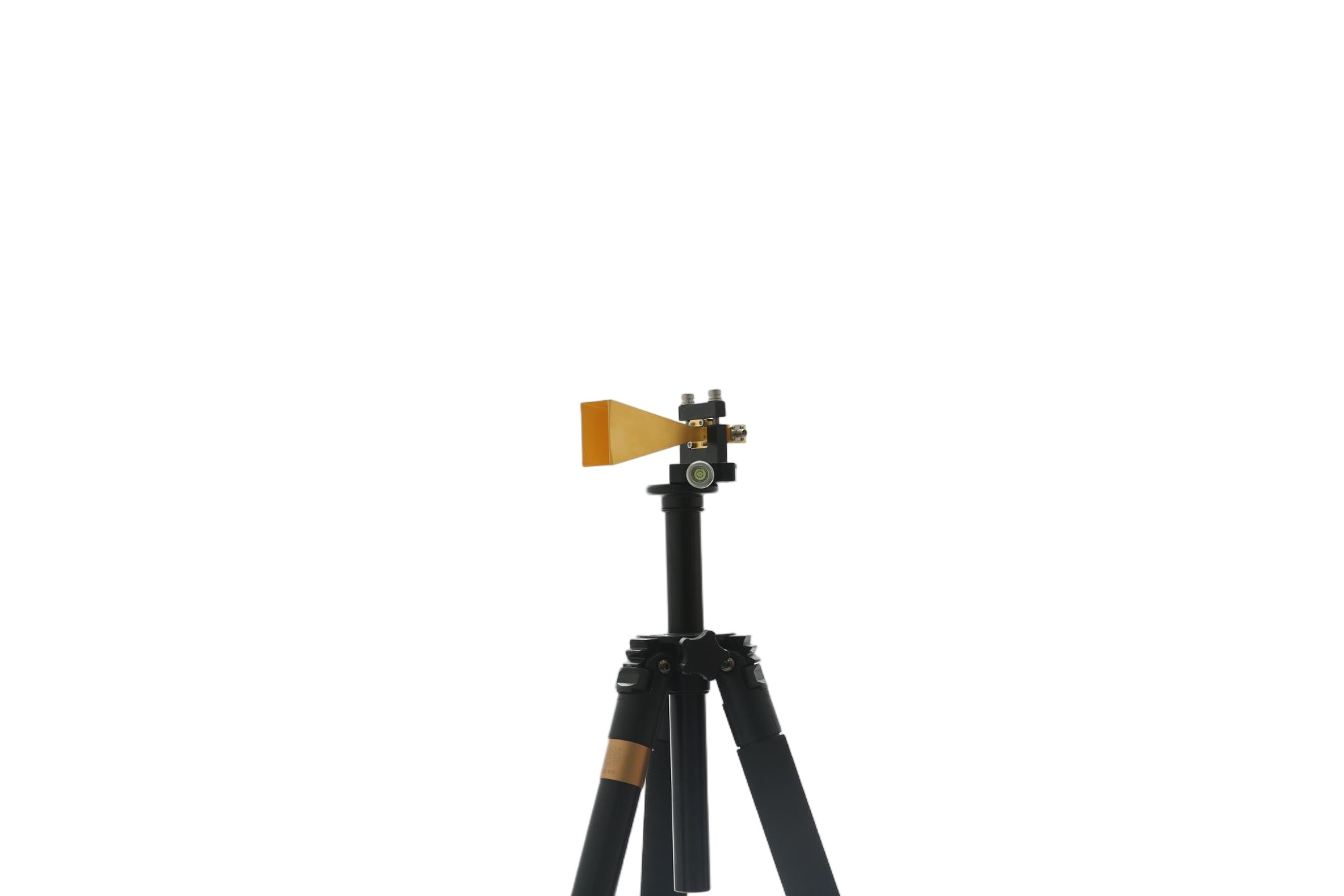

| OBH-180400-20 | 18 | 40 | 10 | Single Linear | 50 | |

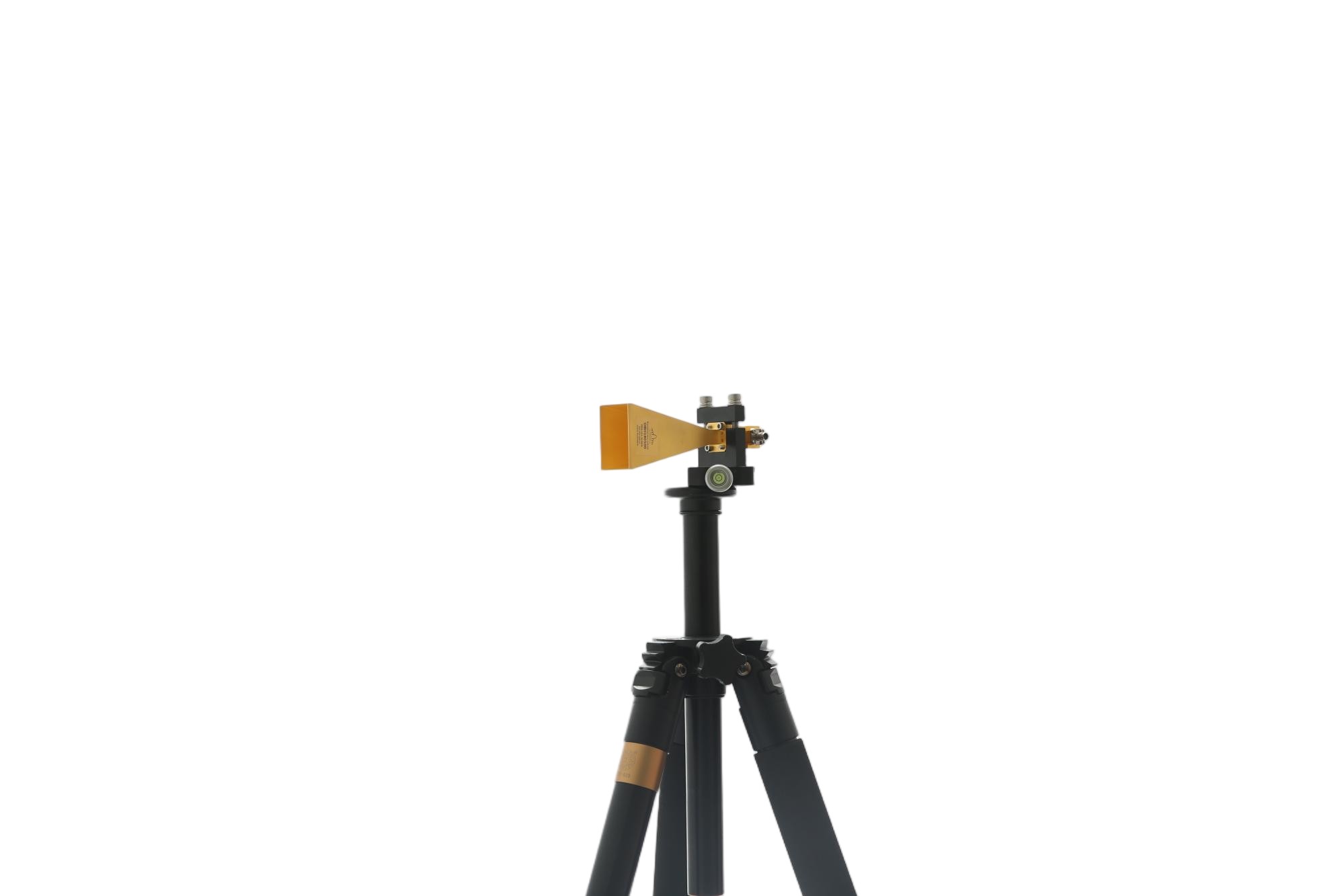

| OBH-180500-20 | 18 | 50 | 20 | Linear | 50 | |
| OBH-20200 | 2 | 20 | 8.25 | Single Linear | 50 | |
| OBH-20320 | 2 | 32 | 10 | Single Linear | 50 | |
| OBH-580D-20 | 6 | 18 | 20 | Single Linear | 50 | |
| OBH-750D-15 | 7.5 | 18 | 15 | Linear | 50 | |

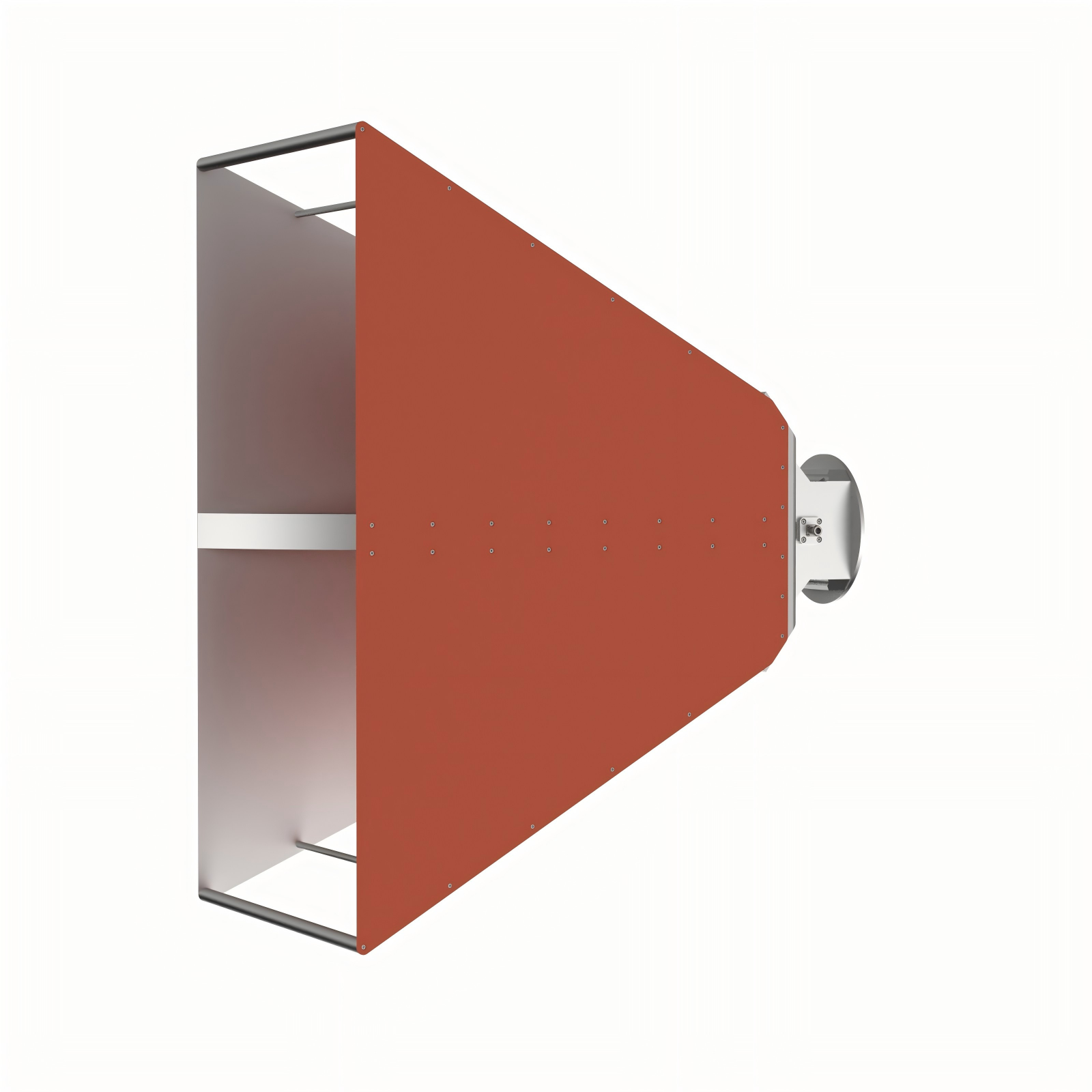

| OBH-230 | 0.2 | 3 | 10.5 | Single Linear | 50 | |
| OBH-460-HG | ||||||
| OBH-690 | 0.6 | 9 | 10.5 | Single Linear | 50 | |
| OBH-760 | ||||||
| OBH-80D-15 | 0.8 | 2 | 13 | Single Linear | 50 | |
| OBH-860-HG | ||||||
| OBH-10125 | 1 | 12.5 | 10.5 | Single Linear | 50 | |
| OBH-110D-15 | 11 | 26.5 | 15 | Linear | 50 | |
| OBH-180400-15 | 18 | 40 | 10 | Single Linear | 50 | |
| OBH-180500-15 | 18 | 50 | 15 | Linear | 50 | |
| OBH-20180 | 2 | 18 | 8.25 | Single Linear | 50 | |
| OBH-20200-C | 2 | 20 | 3.5~13 | Single Linear | 50 | |
| OBH-460 | 0.4 | 6 | 10.5 | Single Linear | 50 |
