Standard Gain Horn Antenna Table View

RFecho is home to precisely designed and manufactured Standard gain horn antennas. At RFecho, we specialize in producing the highest quality RF antennas for every possible need. It has an extensive variety of applications, as transmitting and sampling antennas. The absolute gain of a standard gain horn is calculable from the flare sizes. also known as microwave horn antenna or gain horn antenna.
RFecho’s standard gain horn antennas are manufactured with the client’s need in mind. We know business needs and offer the best when it comes to horn antennas. Our RF gain horn antennas have linear polarization. The material in standard horn antennas is AI or Cu. The impedance used in the horn antenna is 50 ohms. We strive to provide the best possible antenna solutions.

Highlights of RFecho’s standard gain horn antennas:

  • Available from 1GHz to 33 GHz
  • Nominal Gain is up to 25 dBi
  • Circular and Square Flanges
  • Gain calibration is accurate to 0.5 dB over full waveguide bandwidth
  • Made with precise dimensional tolerance control.

Standard Gain Horn Antenna or microwave horn antenna is exactness components providing precise and repeatable gain references. It covers the frequency range from 1GHz to 33GHz, the gain is from 10dBi to 25dBi. Waveguide includes WR-112, WR-137, WR-159, WR-187, WR-284, WR-34, WR-340, WR-42, WR-430, WR-51, WR-62, WR-650, WR–75, WR-770 and WR-90.

Standard gain horn antennas are manufactured with highly close tolerances to make sure the precision of every horn manufactured by RFecho. It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance. This is crucial when you require the best quality RF horn antennas. Popular applications include antenna array, ground testing, radio communication in the Radar industry. These SGH Antennas can also be used in spectrum monitoring in signal processing and EMI-EMF-EMC testing and measurements.



[/vc_column]

Standard Gain Horn Antenna
ImageSkuFreq.Min.(GHz)Freq.Max.(GHz)Gain (dBi)3dB Beam WidthWaveguideMaterialPolarizationWaveguide Size

10 dBi Gain, 110 GHz to 170 GHz, WR-06 .OLB-06-10   Waveguide Millimeter SGH Antenna

OLB-06-1011017010H 55° / V 55°WR-06CuLinearUG-387/U-M Flange

10 dBi Gain, 2.2 GHz to 3.3 GHz, WR-340 Waveguide Standard Gain Horn Antenna

OLB-340-102.23.310H 55° / V 55°WR-340AILinearsquare

10 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna.OLB-28-10

OLB-28-1026.54010H 55° / V 55°WR-28CuLinearUG-599/U Flange

10 dBi Gain, 4.9 GHz to 7.1 GHz, WR-159 Waveguide Standard Gain Horn Antenna

OLB-159-104.97.110H 55° / V 55°WR-159AILinearsquare

10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-10406010H 55° / V 55°WR-19CuLinearUG-383/U-M Flange

10 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna

OLB-137-105.98.210H 55° / V 55°WR-137AILinearsquare

10 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna

OLB-12-10609010H 55° / V 55°WR-12CuLinearUG-387/U Flange

13 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna

OLB-12-13609013E 39° / H 41°WR-12CuLinearUG-387/U Flange

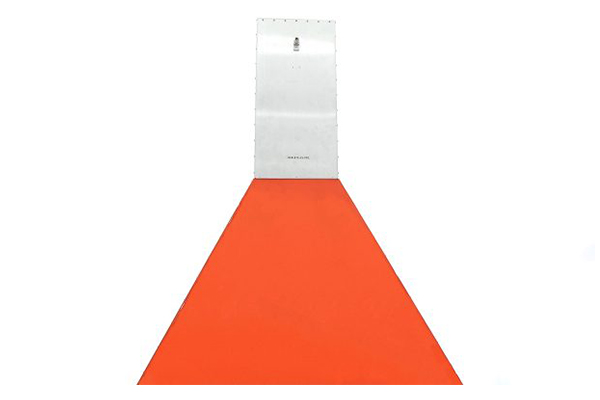

15 dBi Gain, 1 GHz to 1.5 GHz, WR-770 Waveguide Standard Gain Horn Antenna

OLB-770-1511.515H 30° / V 30°WR-770AILinearsquare

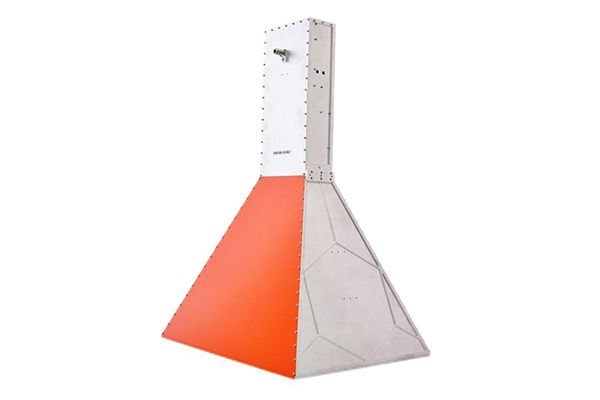

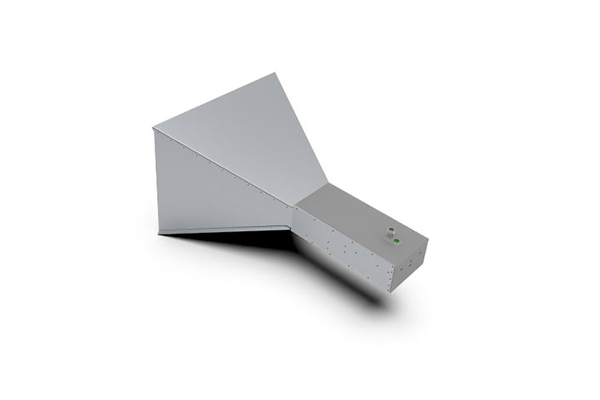

15 dBi Gain, 1.1 GHz to 1.2 GHz, WR-650 Waveguide Standard Gain Horn Antenna

OLB-650-151.11.215H 30° / V 30°WR-650AILinearsquare

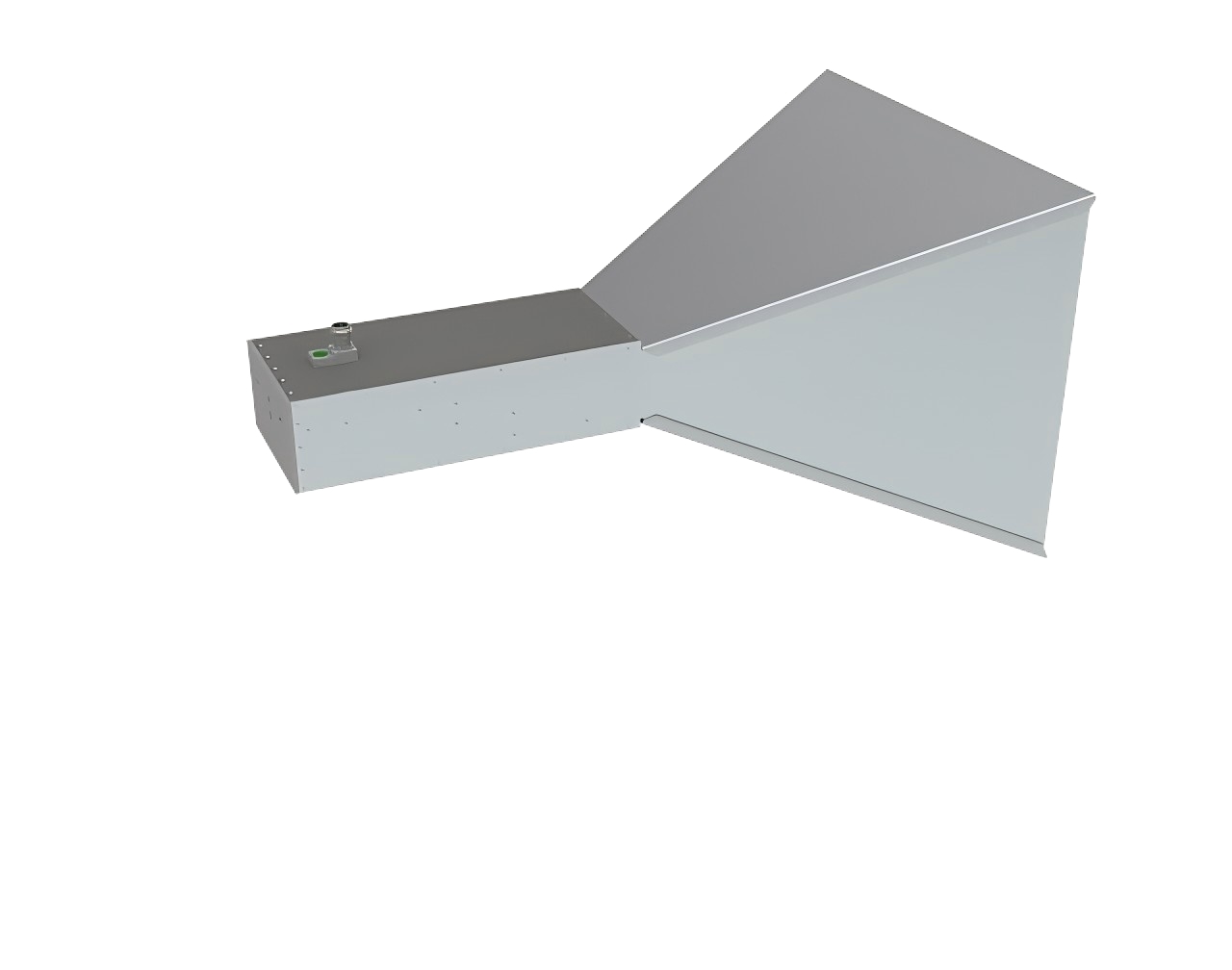

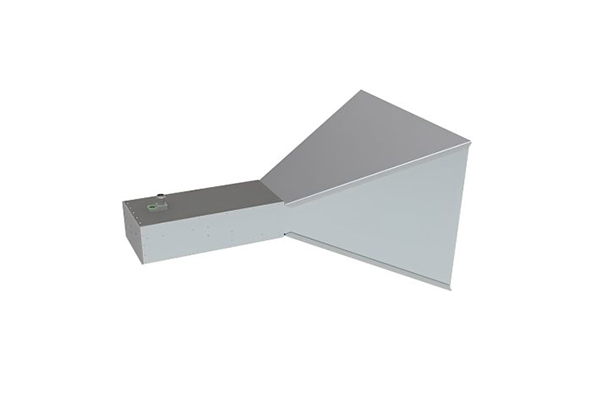

15 dBi Gain, 1.7 GHz to 2.6 GHz, WR-430 Waveguide Standard Gain Horn Antenna

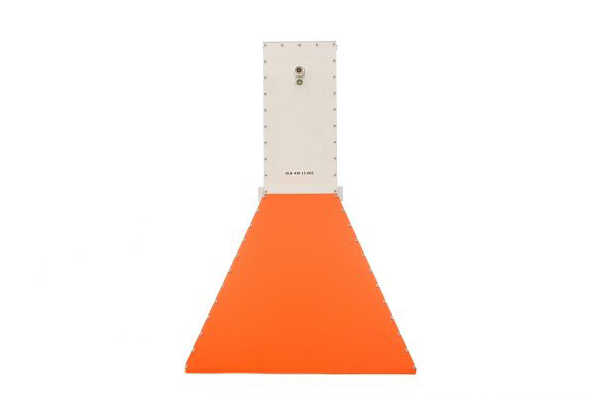

OLB-430-151.72.615H 30° / V 30°WR-430AILinearcircular

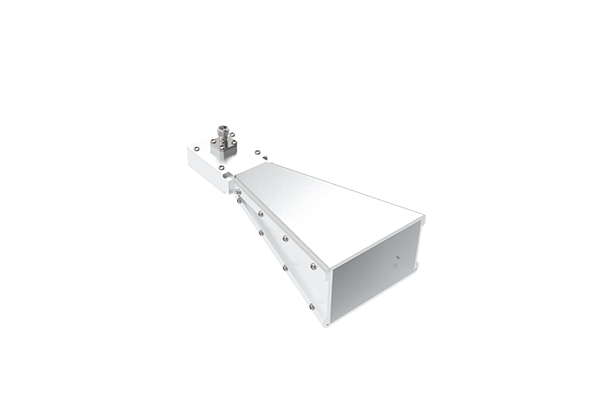

15 dBi Gain, 10 GHz to 15 GHz, WR-75 Waveguide Standard Gain Horn Antenna

OLB-75-15101515H 30° / V 30°WR-75AILinearsquare

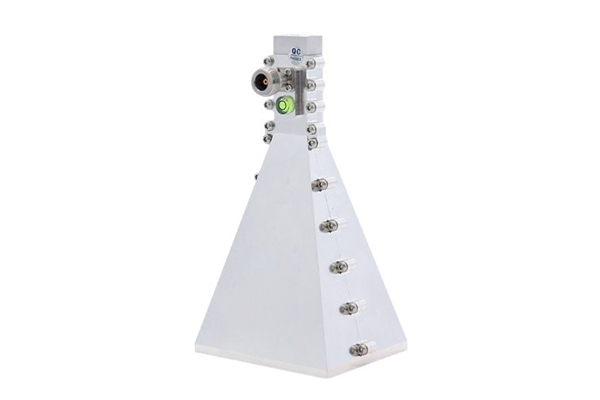

15 dBi Gain, 11 GHz to 18 GHz, WR-62 Waveguide Standard Gain Horn Antenna

OLB-62-15111815H 30° / V 30°WR-62CuLinearcircular

15 dBi Gain, 15 GHz to 22 GHz, WR-51 Waveguide Standard Gain Horn Antenna

OLB-51-15152215H 30° / V 30°WR-51CuLinearsquare

15 dBi Gain, 18 GHz to 26.5 GHz, WR-42 Waveguide Standard Gain Horn Antenna

OLB-42-151826.515H 30° / V 30°WR-42CuLinearsquare

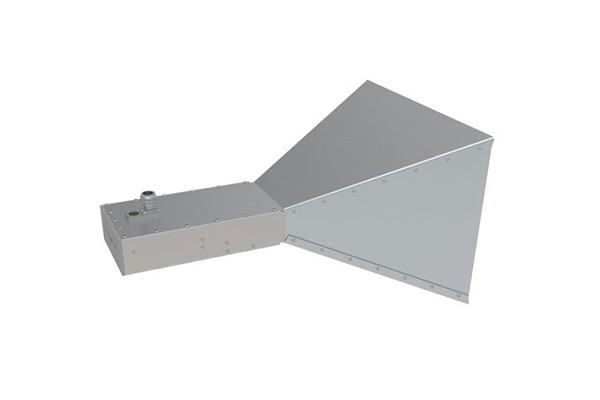

15 dBi Gain, 2.6 GHz to 4 GHz, WR-284 Waveguide Standard Gain Horn Antenna

OLB-284-152.6415H 30° / V 30°WR-284AILinearsquare

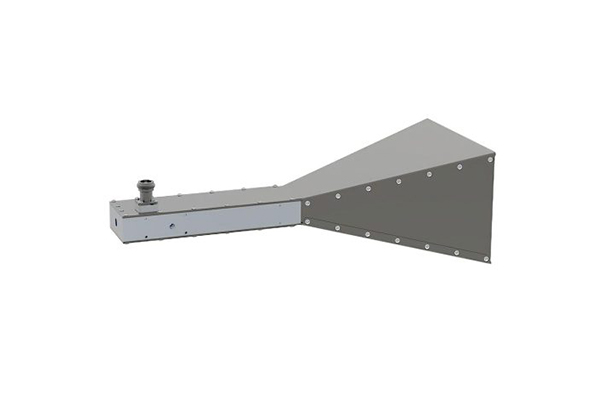

15 dBi Gain, 4.9 GHz to 7.1 GHz, WR-159 Waveguide Standard Gain Horn Antenna

OLB-159-154.97.115H 30° / V 30°WR-159AILinearsquare

15 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-15406015H 30° / V 30°WR-19CuLinearUG-383/U-M Flange

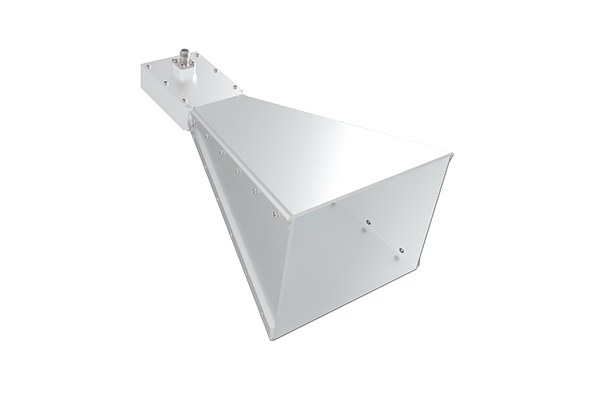

15 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna

OLB-137-155.98.215H 30° / V 30°WR-137AILinearsquare

15 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna OLB-15-15

OLB-15-15507515H 30° / V 30°WR-15CuLinearUG-385/U Flange

15 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna

OLB-12-15609015H 30° / V 30°WR-12CuLinearUG-387/U Flange

15 dBi Gain, 7.5 GHz to 10 GHz, WR-112 Waveguide Standard Gain Horn Antenna

OLB-112-157.51015H 30° / V 30°WR-112AILinearsquare

15 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

OLB-10-157511015H 30° / V 30°WR-10CuLinearUG-387/U-M Flange

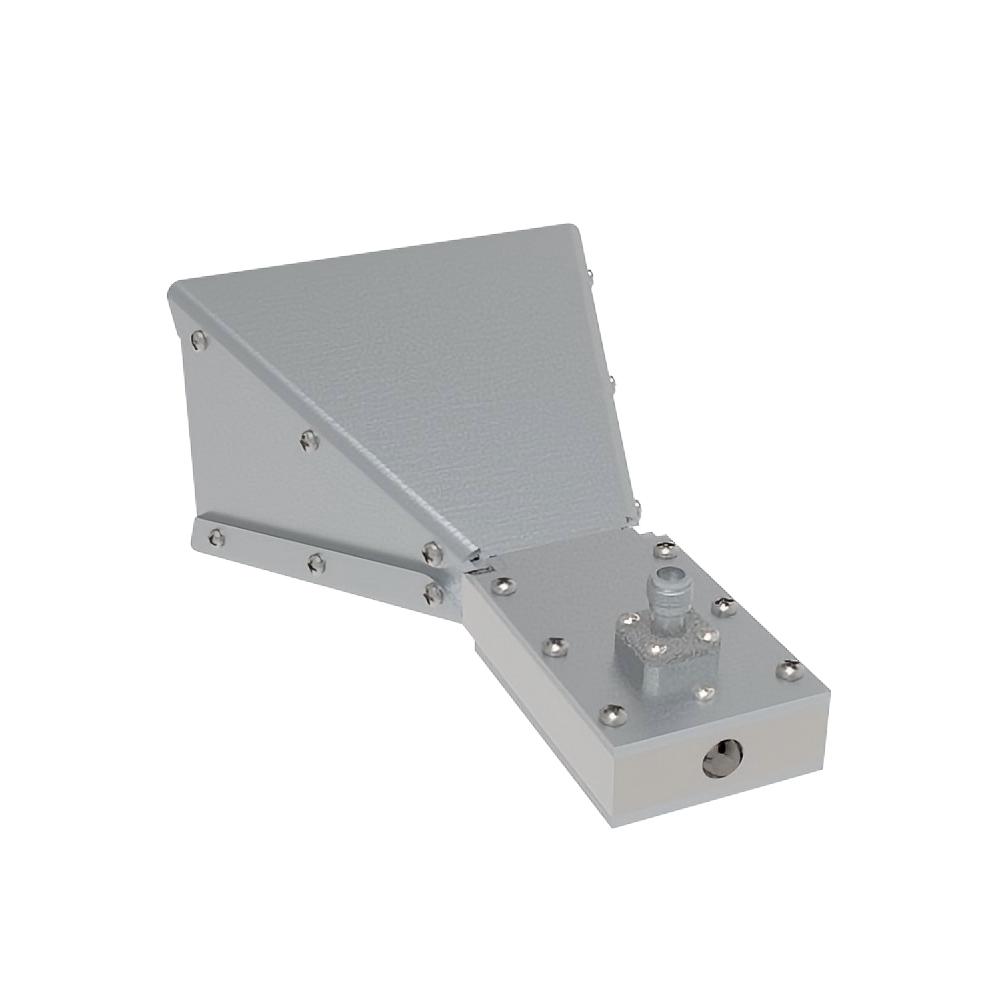

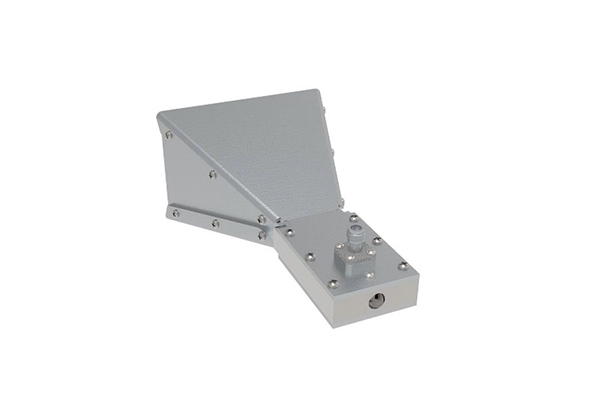

15 dBi Gain, 8.2 GHz to 12.5 GHz, WR-90 Waveguide Standard Gain Horn Antenna

OLB-90-158.212.515H 30° / V 30°WR-90AILinearcircular

17 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna.OLB-28-17

OLB-28-1726.54017E 26° / H 25°WR-28CuLinearUG-599/U Flange

17 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-17406017H 25° / V 25°WR-19CuLinearUG-383/U-M Flange

17 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna  OLB-15-17

OLB-15-17507517E 26° / H 25°WR-15CuLinearUG-385/U Flange

20 dBi Gain, 1.7 GHz to 2.6 GHz, WR-430 Waveguide Standard Gain Horn Antenna

OLB-430-201.72.620H 18° / V 18°WR-430AILinearsquare

20 dBi Gain, 10 GHz to 15 GHz, WR-75 Waveguide Standard Gain Horn Antenna

OLB-75-20101520H 18° / V 18°WR-75AILinearsquare

20 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Millimeter SGH Antenna

OLB-06-2011017020H 18° / V 18°WR-06CuLinearUG-387/U-M Flange

20 dBi Gain, 140 GHz to 220 GHz, WR-05 Waveguide Millimeter SGH Antenna

OLB-05-2014022020H 18° / V 18°WR-05CuLinearUG-387/U-M Flange

20 dBi Gain, 18 GHz to 26.5 GHz, WR-42 Waveguide Standard Gain Horn Antenna

OLB-42-201826.520H 18° / V 18°WR-42CuLinearsquare

20 dBi Gain, 2.2 GHz to 3.3 GHz, WR-340 Waveguide Standard Gain Horn Antenna

OLB-340-202.23.320H 18° / V 18°WR-340AILinearsquare

20 dBi Gain, 2.6 GHz to 4 GHz, WR-284 Waveguide Standard Gain Horn Antenna

OLB-284-202.6420H 18° / V 18°WR-284AILinearsquare

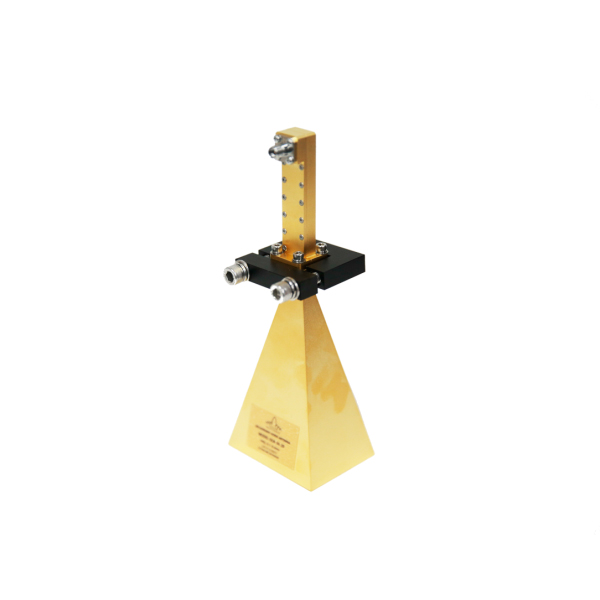

20 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Standard Gain Horn Antenna OLB-34-20

OLB-34-20223320H 18° / V 18°WR-34CuLinearsquare

20 dBi Gain, 220 GHz to 325 GHz, WR-03 Waveguide Millimeter SGH Antenna

OLB-03-2022032520H 13° / V 13°WR-03CuLinearUG-387/U-M Flange

20 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna OLB-28-20

OLB-28-2026.54020H 18° / V 18°WR-28CuLinearUG-599/U Flange

20 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna  OLB-22-20

OLB-22-20335020H 18° / V 18°WR-22CuLinearUG-383/U Flange

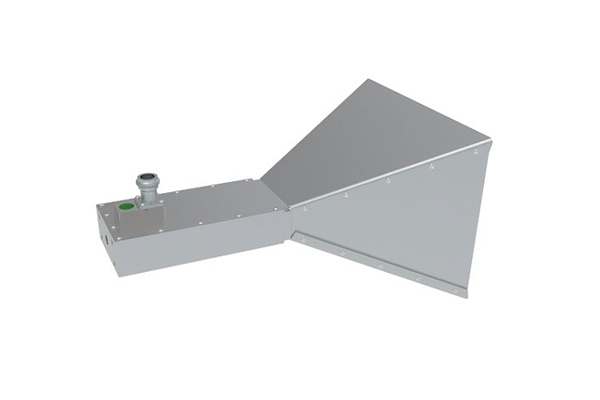

20 dBi Gain, 4 GHz to 5.9 GHz, WR-187 Waveguide Standard Gain Horn Antenna

OLB-187-2045.920H 18° / V 18°WR-187AILinearsquare

20 dBi Gain, 4.9 GHz to 7.1 GHz, WR-159 Waveguide Standard Gain Horn Antenna

OLB-159-204.97.120H 18° / V 18°WR-159AILinearsquare

20 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-20406020H 18° / V 18°WR-19CuLinearUG-383/U-M Flange

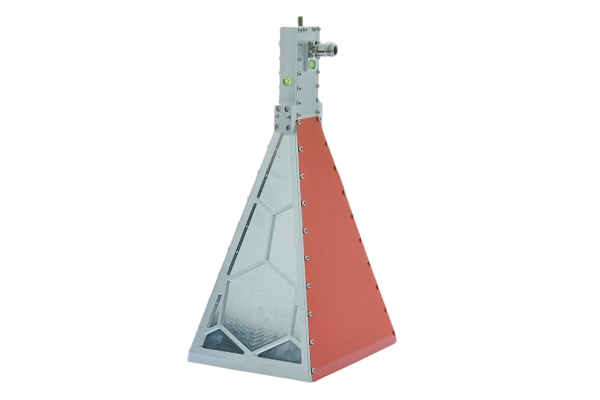

20 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna

OLB-137-205.98.220H 18° / V 18°WR-137AILinearsquare

20 dBi Gain, 50 GHz to 75 GHz, WR-15 . OLB-15-20 Waveguide Millimeter SGH Antenna

OLB-15-20507520H 18° / V 18°WR-15CuLinearUG-385/U Flange

20 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna

OLB-12-20609020H 18° / V 18°WR-12CuLinearUG-387/U Flange

20 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

OLB-10-207511020H 18° / V 18°WR-10CuLinearUG-387/U-M Flange

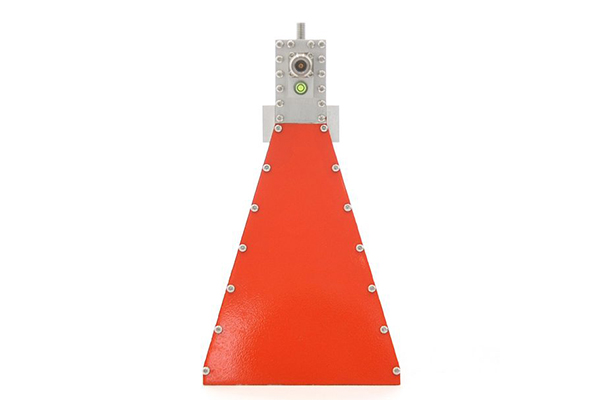

20 dBi Gain, 8.2 GHz to 12.5 GHz, WR-90 Waveguide Standard Gain Horn Antenna

OLB-90-208.212.520H 18° / V 18°WR-90AILinearcircular

20 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

OLB-08-209014020H 18° / V 18°WR-08CuLinearUG-387/U-M Flange

23 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Millimeter SGH Antenna

OLB-06-2311017023E 11° / H 13°WR-06CuLinearUG-387/U-M Flange

23 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna

OLB-28-2326.54023E 11° / H 13°WR-28CuLinearUG-599/U Flange

23 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna  OLB-22-23

OLB-22-23335023E 11° / H 13°WR-22CuLinearUG-383/U Flange

23 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-23406023E 11° / H 13°WR-19CuLinearUG-383/U-M Flange

23 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna OLB-15-23

OLB-15-23507523E 11° / H 13°WR-15CuLinearUG-385/U Flange

23 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna

OLB-12-23609023E 11° / H 13°WR-12CuLinearUG-387/U Flange

23 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

OLB-10-237511023E 11° / H 13°WR-10CuLinearUG-387/U-M Flange

23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

OLB-08-239014023E 11° / H 13°WR-08CuLinearUG-387/U-M Flange

25 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Millimeter SGH Antenna

OLB-06-2511017025H 10° / V 10°WR-06CuLinearUG-387/U-M Flange

25 dBi Gain, 140 GHz to 220 GHz, WR-05 Waveguide Millimeter SGH Antenna

OLB-05-2514022025H 10° / V 10°WR-05CuLinearUG-387/U-M Flange

25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna

OLB-04-2517026025H 10° / V 10°WR-04CuLinearUG-387/U-M Flange

25 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Standard Gain Horn Antenna

OLB-34-25223325H 10° / V 10°WR-34CuLinearsquare

25 dBi Gain, 220 GHz to 325 GHz, WR-03 Waveguide Millimeter SGH Antenna

OLB-03-2522032525H 10° / V 10°WR-03CuLinearUG-387/U-M Flange

25 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna OLB-28-25

OLB-28-2526.54025H 10° / V 10°WR-28CuLinearUG-599/U Flange

25 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna  OLB-22-25

OLB-22-25335025H 10° / V 10°WR-22CuLinearUG-383/U Flange

25 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna  OLB-19-25

OLB-19-25406025H 10° / V 10°WR-19CuLinearUG-383/U-M Flange

25 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna .OLB-15-25

OLB-15-25507525H 10° / V 10°WR-15CuLinearUG-385/U Flange

25 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna  OLB-12-25

OLB-12-25609025H 10° / V 10°WR-12CuLinearUG-387/U Flange

25 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

OLB-10-257511025H 10° / V 10°WR-10CuLinearUG-387/U-M Flange

25 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

OLB-08-259014025H 10° / V 10°WR-08CuLinearUG-387/U-M Flange
