RF Power Divider
Power Dividers is yet another expertise of RFecho. Precision in manufacturing and consistency in performance is assured. RF/microwave power divider splits input signals into two equal and identical (i.e. in-phase) signals. If used as a power combiner, common port would be the output and the two equal power ports are used as the inputs. Important specifications when used as a power divider include the insertion loss, amplitude, and phase balance between the arms, and return losses. For power combining of uncorrelated signals, the most important specification is the isolation, which is the insertion loss from one equal power port to the other. RFecho provides 2 way, 3 way, 4 way, 6 way, 8 way, 12 way, 16 way, and 32 way. A few of the highlights of RF Power Dividers are:
- Up to 32 way of Power Divider
- Can be used as combiners or splitters
- High isolation, blocking signal cross-talk between output ports
- Low insertion and return loss
- Excellent (<0.5dB) amplitude and (<3°) phase balance
Important merits to be considered while selecting the right power divider includes splitting ratio/coupling ratio, relative phase shift, amplitude balance, amplitude ripple, phase balance, phase ripple, insertion loss, power divider isolation, coupler isolation and directivity, VSWR/return loss.
| Image | Series | SKU | Min. Freq (GHz) | Max. Freq(GHz) | Insertion Loss (dB) | Isolation (dB) | Amplitude Balance (dB) | Phase Balance (°) | Product Page | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|

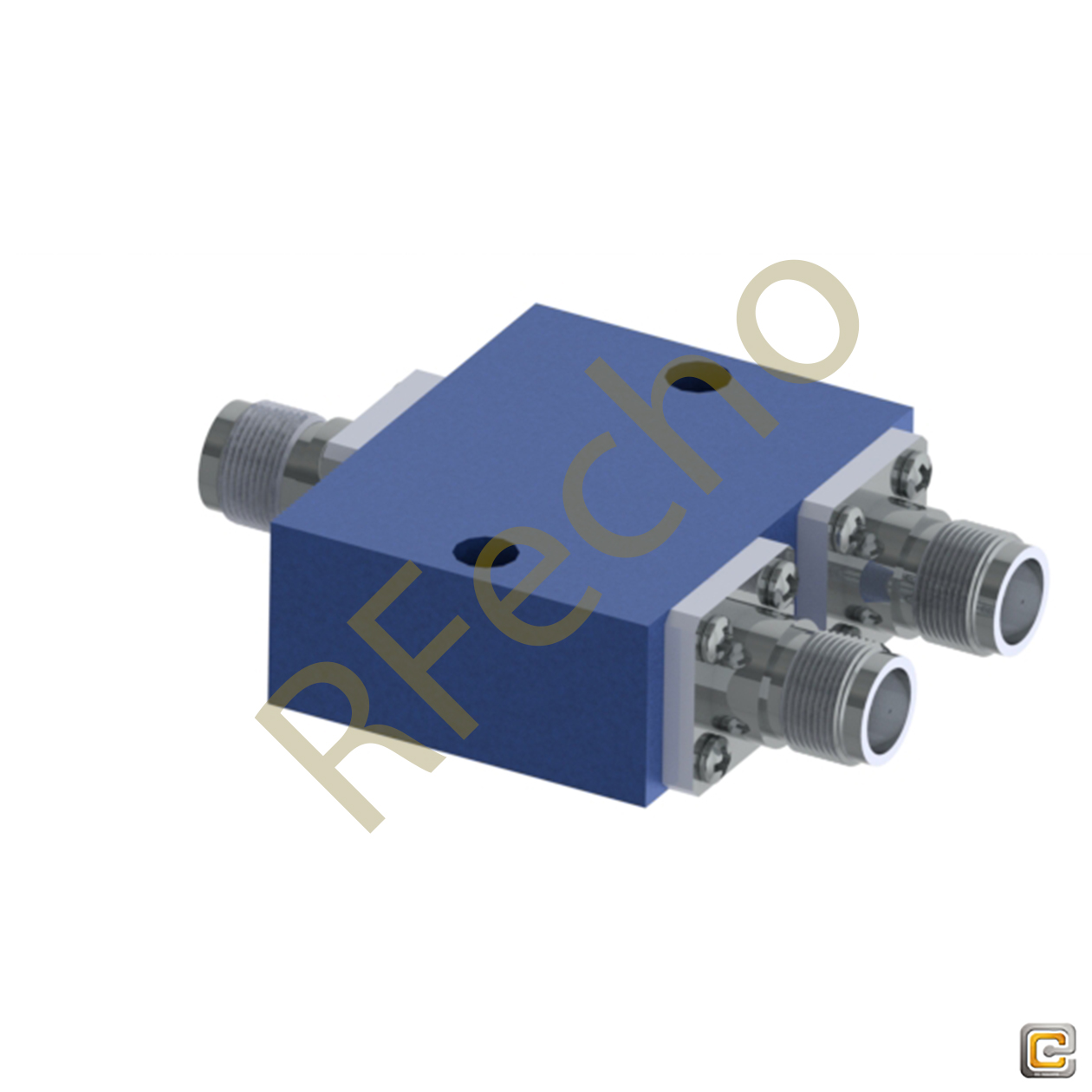

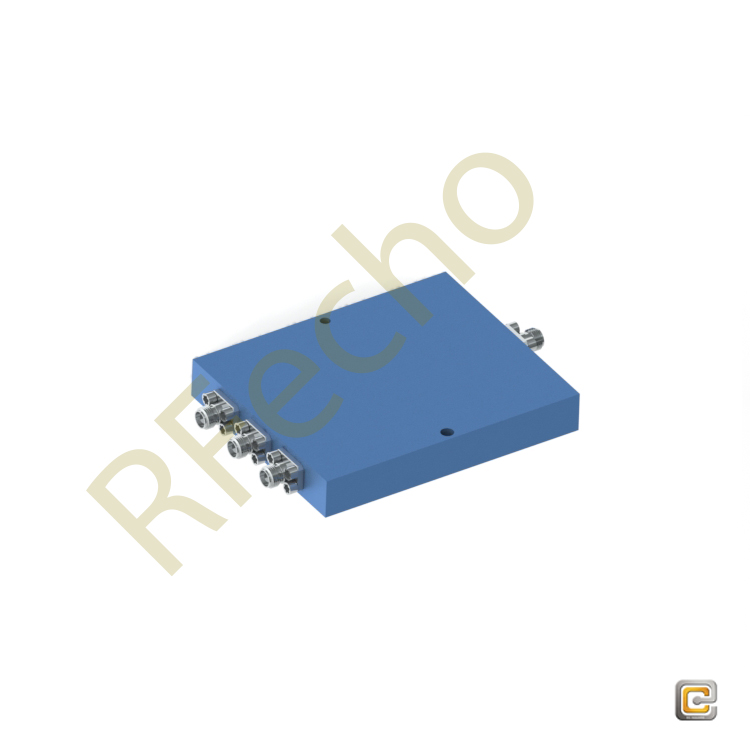

 | 3 Way | OPD-3-520S | 0.5 | 2 | 0.6 | 17 | 0.3 | 7 | View Product | Datasheet |
 | 3 Way | OPD-3-810S | 0.8 | 1 | 0.3 | 20 | 0.3 | 3 | View Product | Datasheet |
 | 3 Way | OPD-3-824S | 0.8 | 2.4 | 0.6 | 18 | 0.3 | 7 | View Product | Datasheet |
 | 3 Way | OPD-3-1015S | 1 | 1.5 | 0.3 | 20 | 0.3 | 6 | View Product | Datasheet |
 | 3 Way | OPD-3-1417S | 1.4 | 1.7 | 0.3 | 20 | 0.3 | 6 | View Product | Datasheet |
 | 3 Way | OPD-3-1525S | 1.5 | 2.5 | 0.3 | 19 | 0.3 | 6 | View Product | Datasheet |
 | 3 Way | OPD-3-1719S | 1.7 | 1.9 | 0.3 | 20 | 0.3 | 6 | View Product | Datasheet |
 | 3 Way | OPD-3-2025S | 2 | 2.5 | 0.3 | 20 | 0.3 | 5 | View Product | Datasheet |
 | 3 Way | OPD-3-20180S | 2 | 18 | 1.5 | 18 | 0.4 | 10 | View Product | Datasheet |
 | 3 Way | OPD-3-20200S | 2 | 20 | 1.8 | 16 | 0.5 | 12 | View Product | Datasheet |
 | 3 Way | OPD-3-80124S | 8 | 12.4 | 1.2 | 15 | 0.4 | 10 | View Product | Datasheet |
 | 2 Way | OPD-2-25S | 0.25 | 0.5 | 0.2 | 22 | 0.2 | 2 | View Product | Datasheet |
 | 2 Way | OPD-2-410S | 0.4 | 1 | 0.4 | 18 | 0.2 | 2 | View Product | Datasheet |
 | 2 Way | OPD-2-520S | 0.5 | 2 | 0.6 | 22 | 0.2 | 2 | View Product | Datasheet |

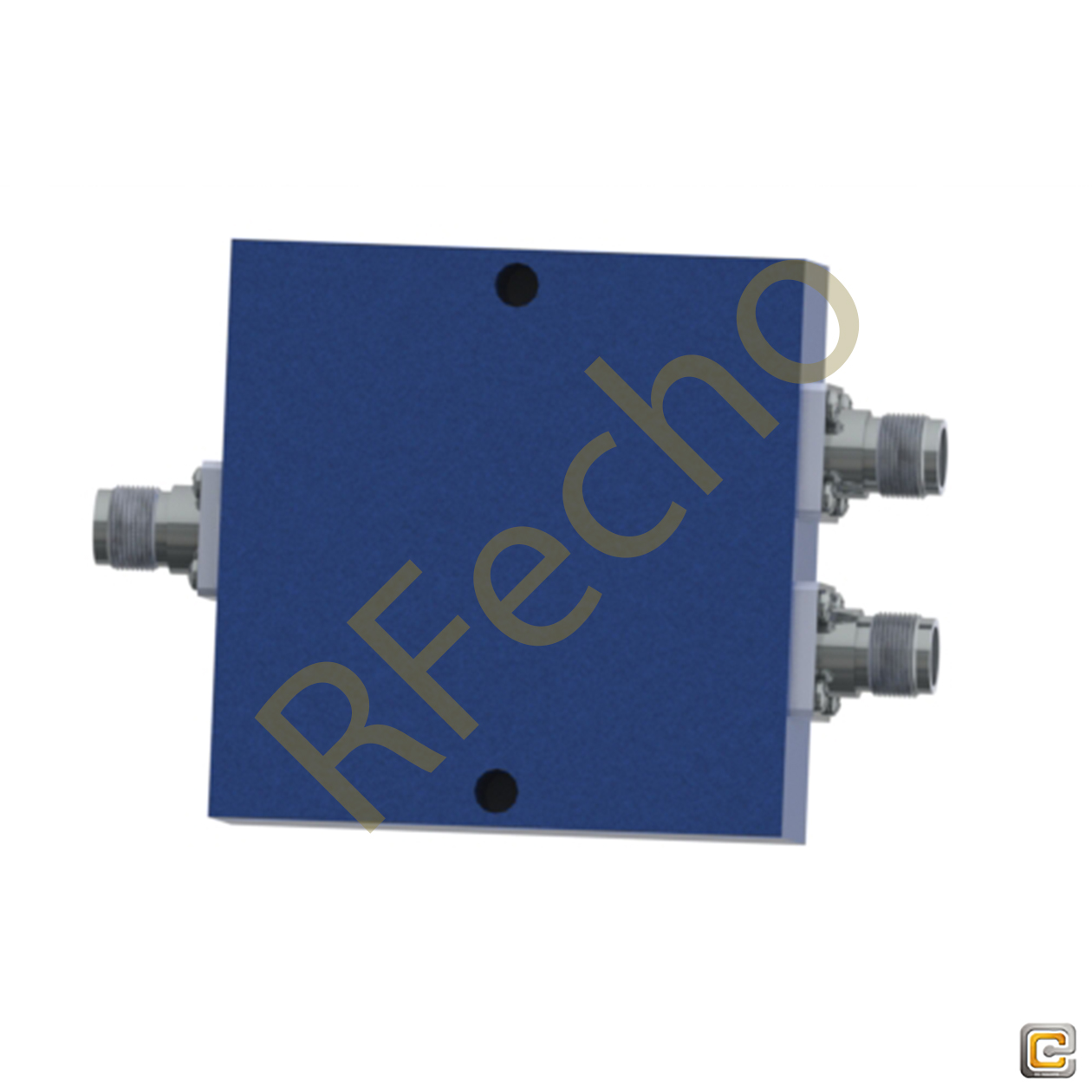

 | 2 Way | OPD-2-540S | 0.5 | 4 | 0.5 | 16 | 0.3 | 4 | View Product | Datasheet |

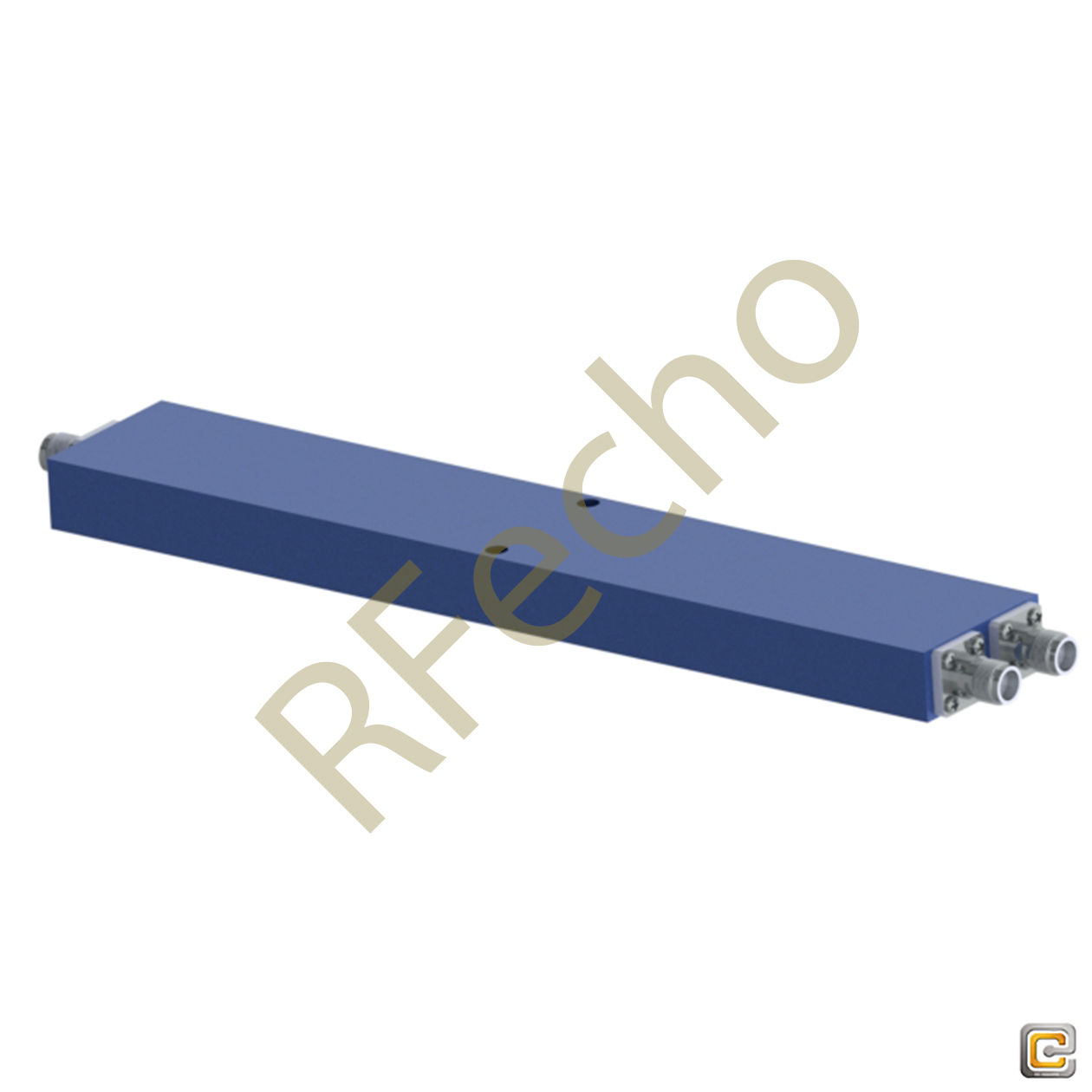

 | 2 Way | OPD-2-560S | 0.5 | 6 | 0.6 | 18 | 0.3 | 4 | View Product | Datasheet |

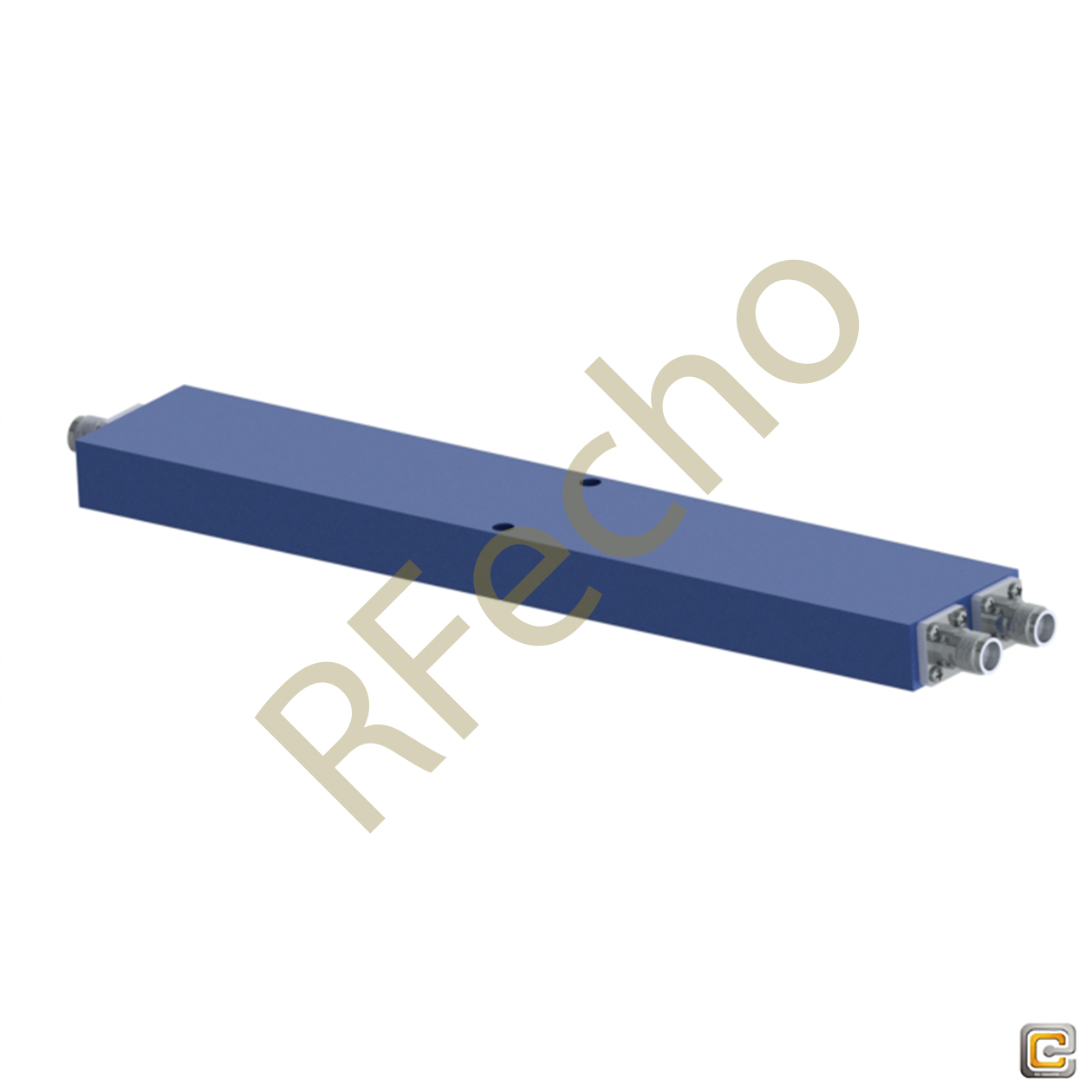

 | 2 Way | OPD-2-580S | 0.5 | 8 | 1 | 18 | 0.5 | 5 | View Product | Datasheet |
 | 2 Way | OPD-2-822S | 0.8 | 2.2 | 0.4 | 20 | 0.2 | 3 | View Product | Datasheet |

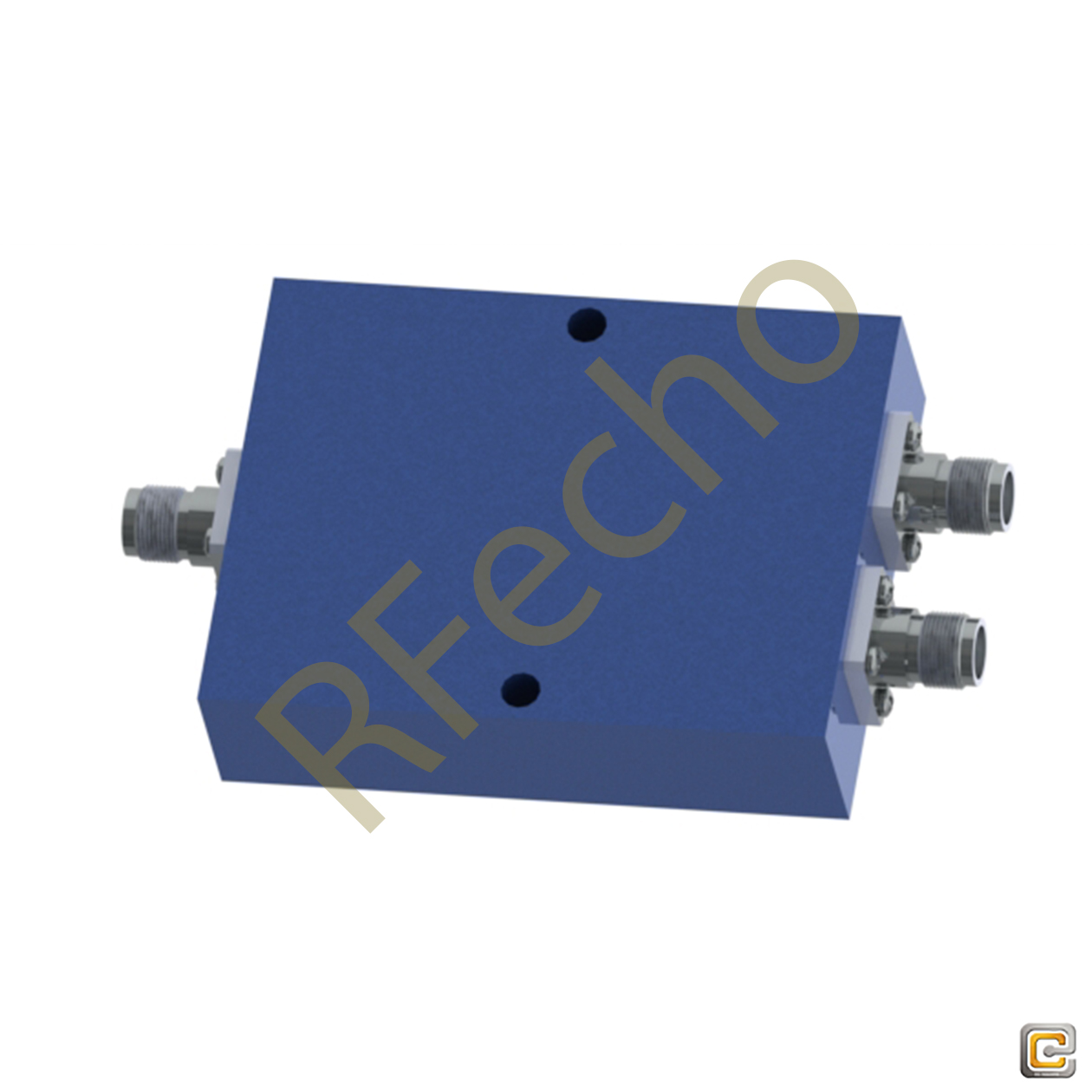

 | 2 Way | OPD-2-825S | 0.8 | 2.5 | 0.5 | 20 | 0.3 | 4 | View Product | Datasheet |
 | 2 Way | OPD-2-1012S | 0.95 | 1.225 | 0.3 | 22 | 0.3 | 2 | View Product | Datasheet |
 | 2 Way | OPD-2-1020S | 1 | 2 | 0.3 | 22 | 0.2 | 3 | View Product | Datasheet |
 | 2 Way | OPD-2-1040S | 1 | 4 | 0.4 | 20 | 0.2 | 5 | View Product | Datasheet |
 | 2 Way | OPD-2-1530S | 1.5 | 3 | 0.3 | 20 | 0.2 | 2 | View Product | Datasheet |
 | 2 Way | OPD-2-2040S | 2 | 4 | 0.4 | 20 | 0.2 | 3 | View Product | Datasheet |

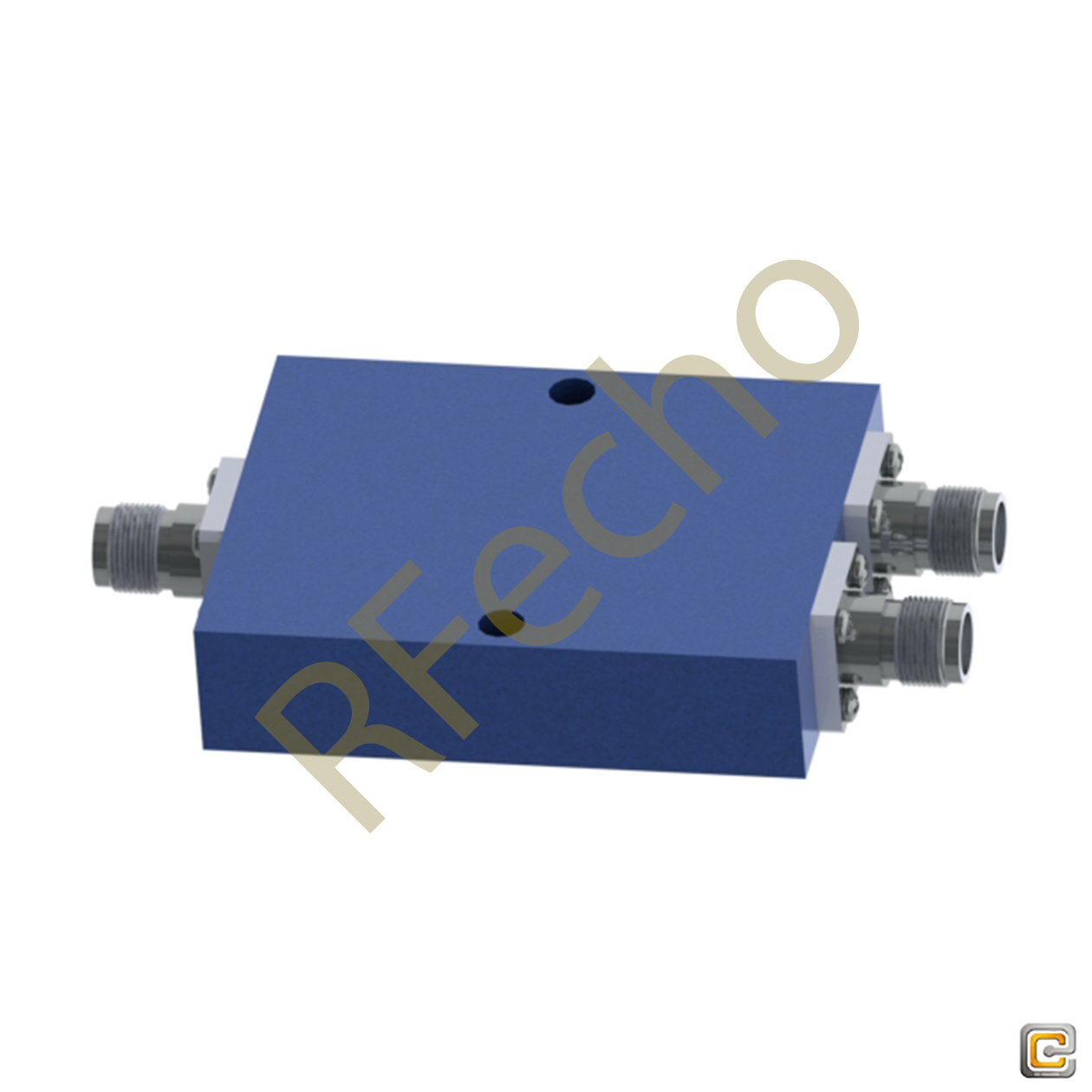

 | 2 Way | OPD-2-2080S | 2 | 8 | 0.4 | 20 | 0.3 | 4 | View Product | Datasheet |

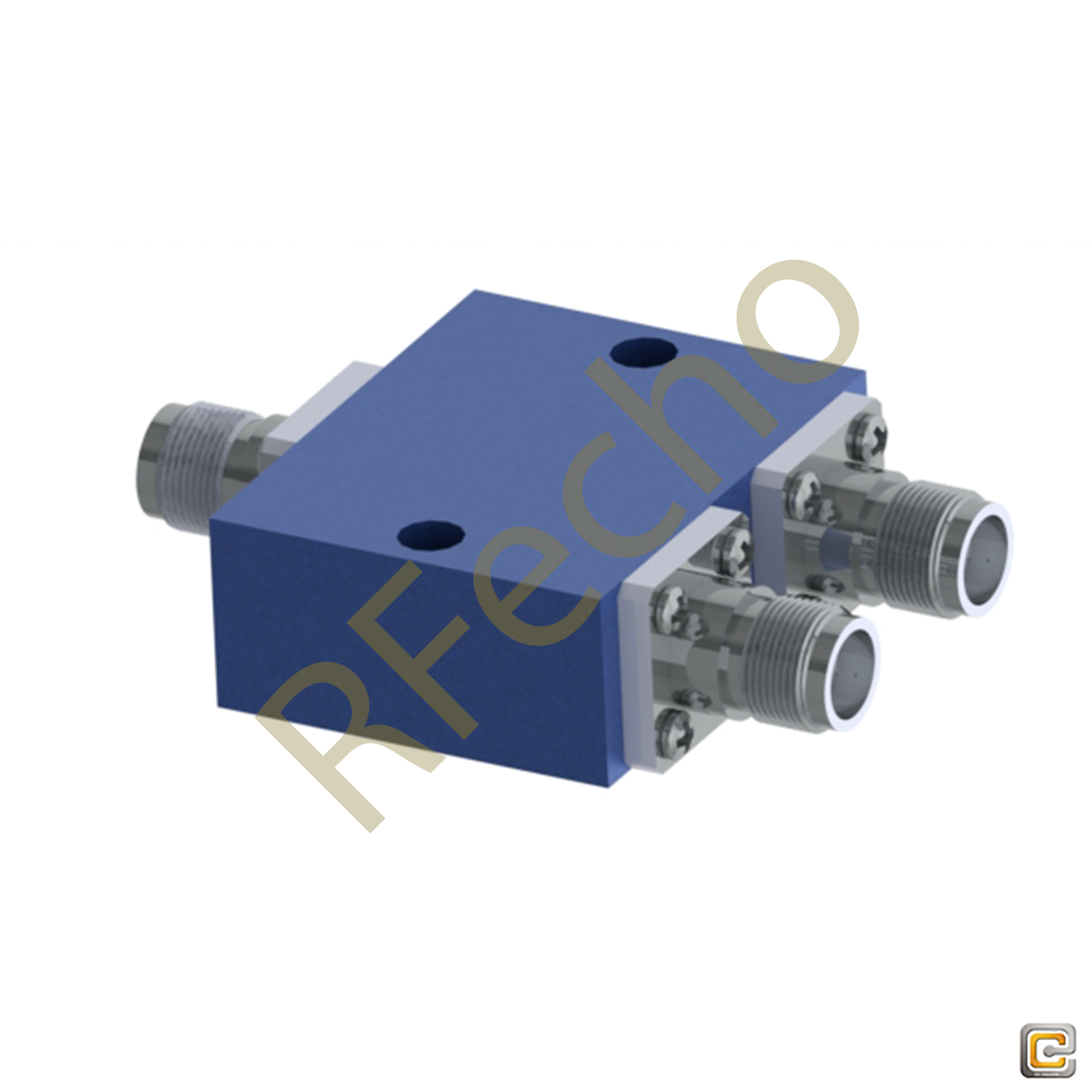

 | 2 Way | OPD-2-3643S | 3.6 | 4.2 | 0.3 | 21 | 0.2 | 2 | View Product | Datasheet |

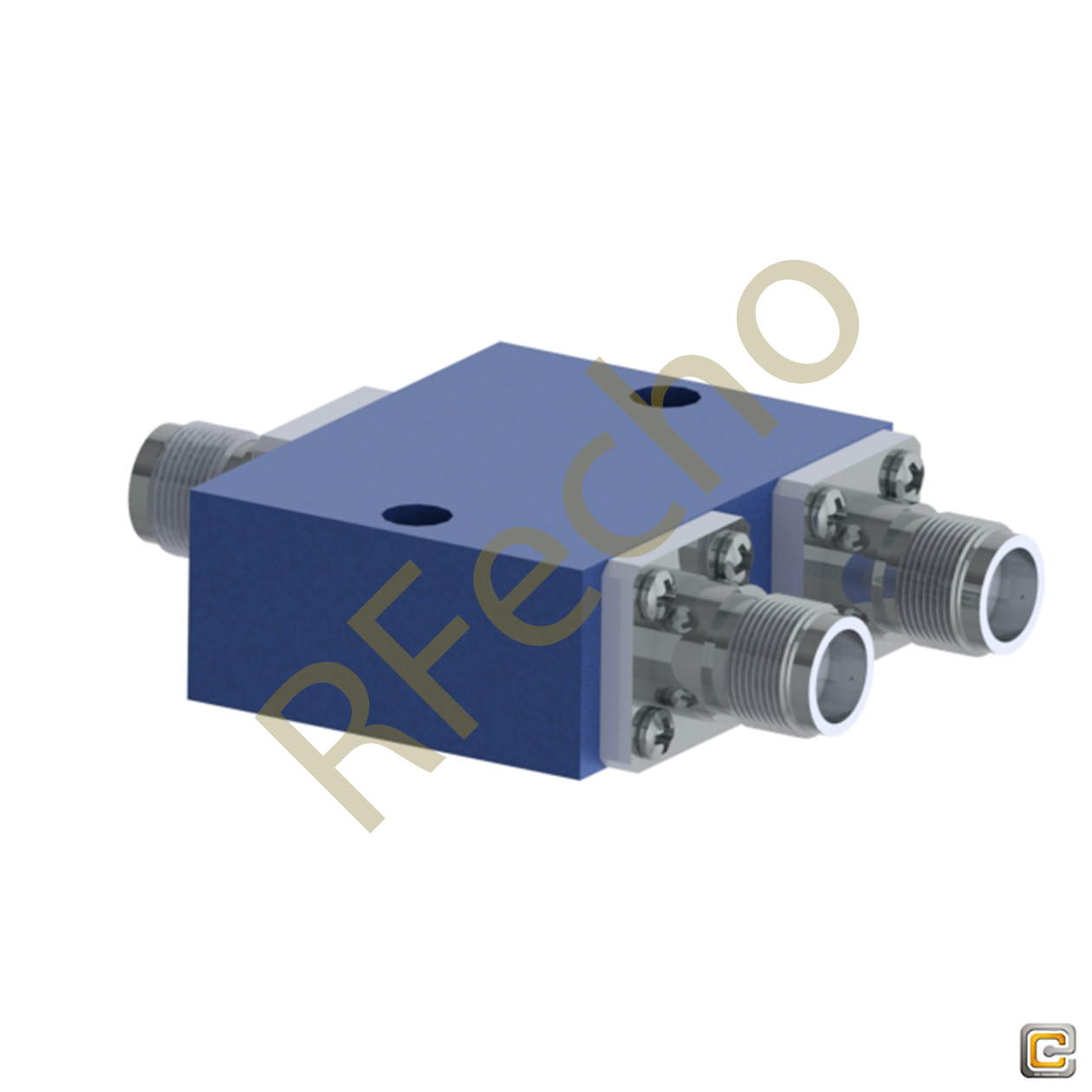

 | 2 Way | OPD-2-4080S | 4 | 8 | 0.4 | 20 | 0.2 | 2 | View Product | Datasheet |
 | 2 Way | OPD-2-5180S | 0.5 | 18 | 1.7 | 16 | 0.6 | 10 | View Product | Datasheet |

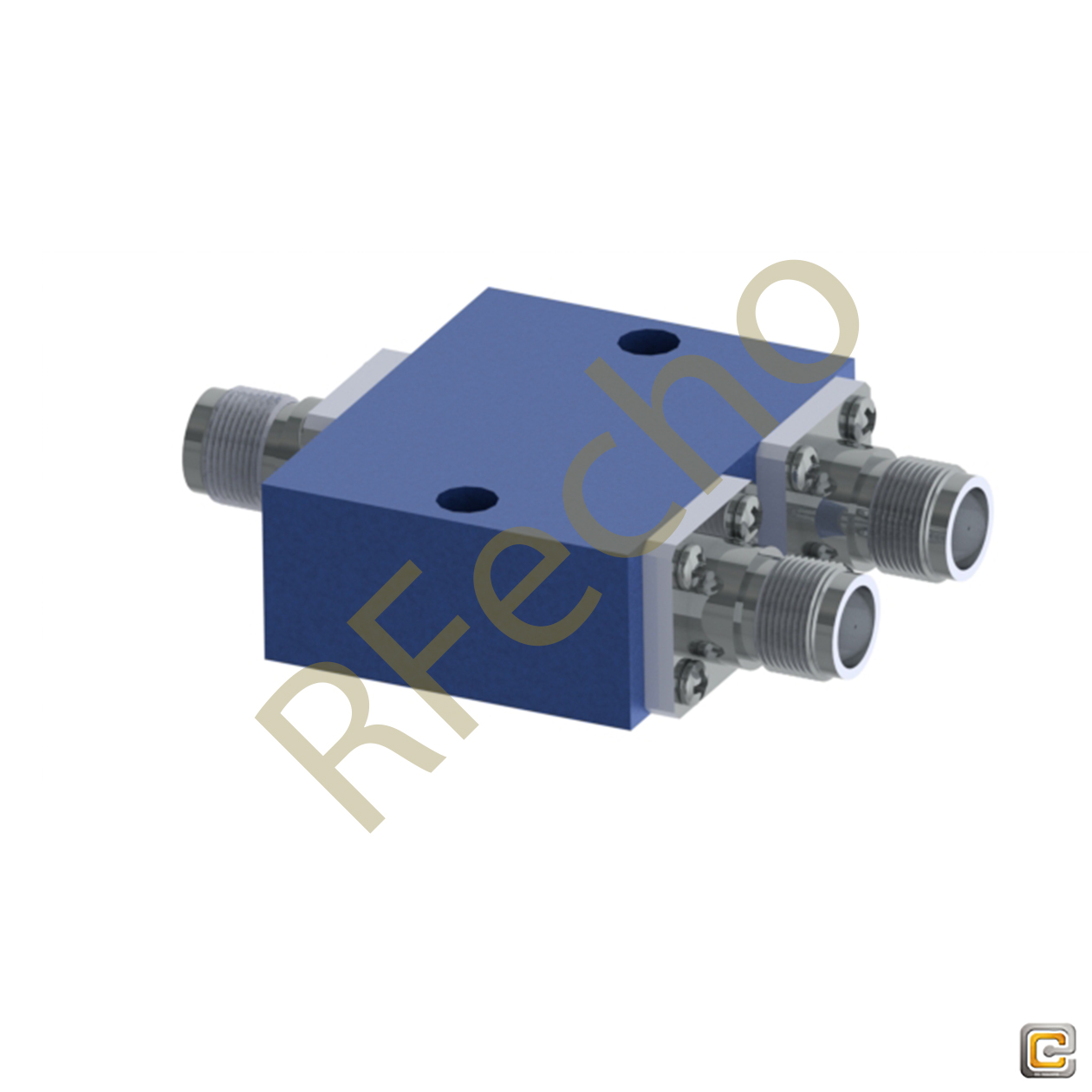

 | 2 Way | OPD-2-5865S | 5.8 | 6.45 | 0.3 | 20 | 0.2 | 2 | View Product | Datasheet |

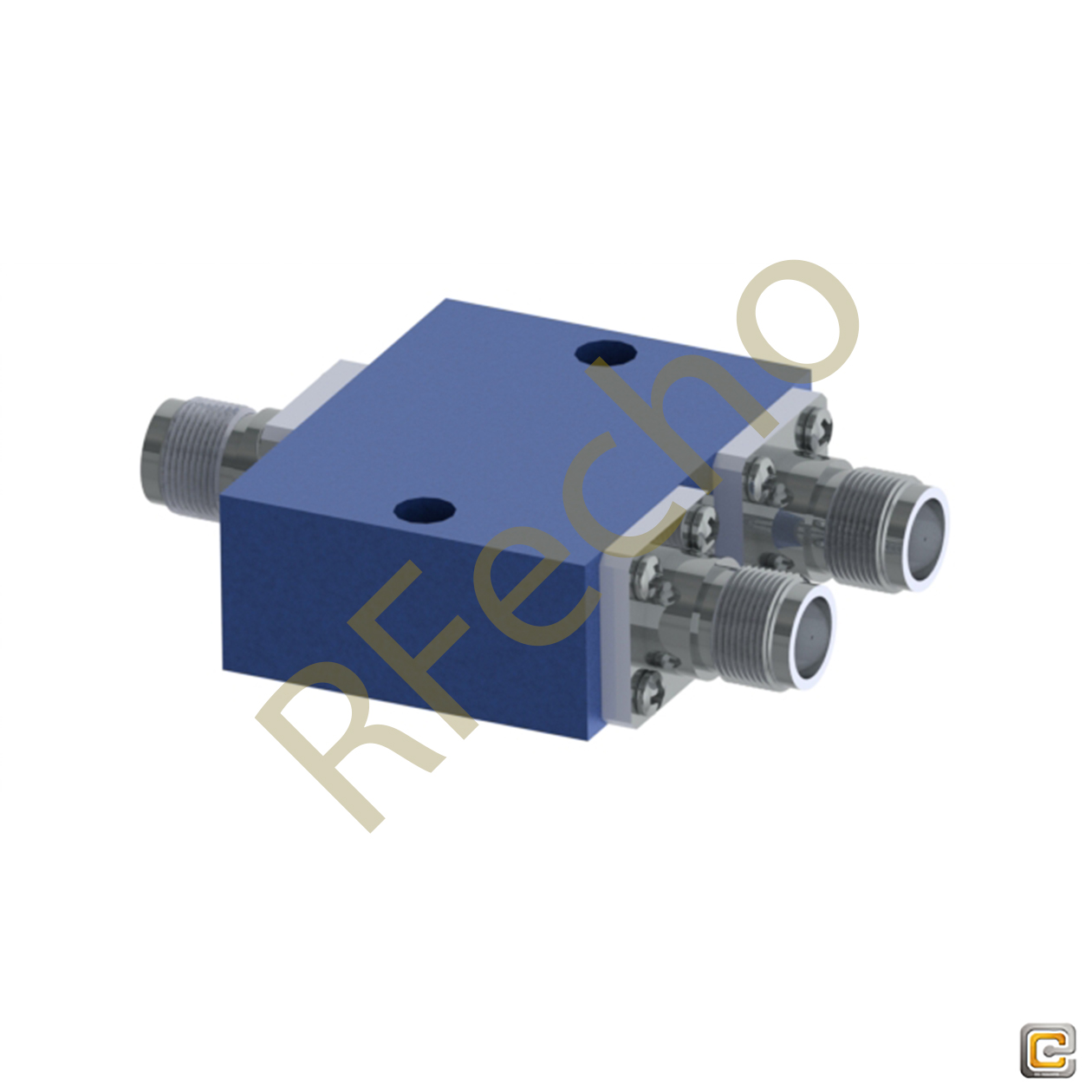

 | 2 Way | OPD-2-7285S | 7.2 | 8.5 | 0.5 | 20 | 0.2 | 3 | View Product | Datasheet |
 | 2 Way | OPD-2-10180S | 1 | 18 | 1.5 | 17 | 0.5 | 8 | View Product | Datasheet |

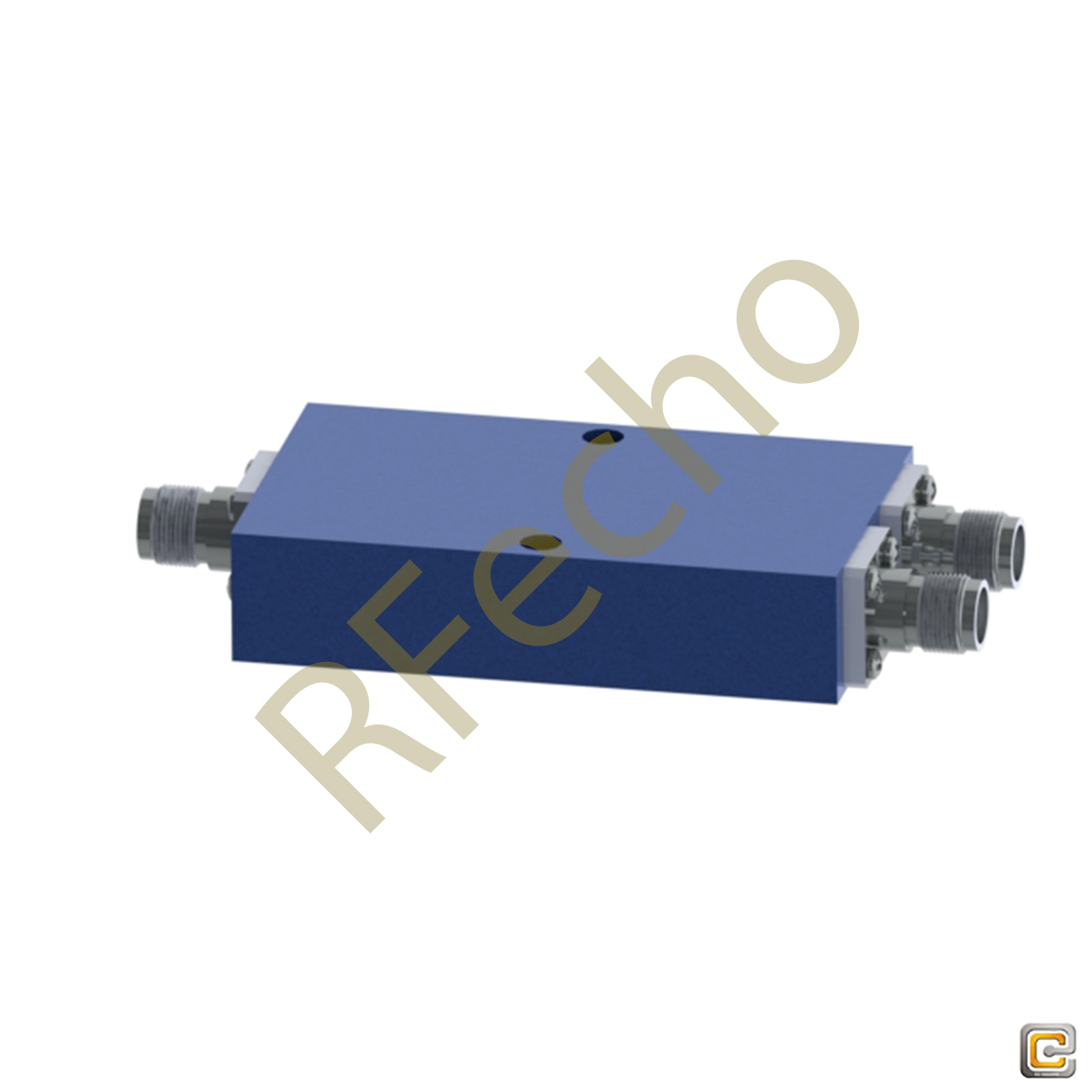

 | 2 Way | OPD-2-20180S | 2 | 18 | 1 | 18 | 0.4 | 5 | View Product | Datasheet |
 | 2 Way | OPD-2-40270S | 4 | 27 | 1 | 18 | 0.5 | 6 | View Product | Datasheet |

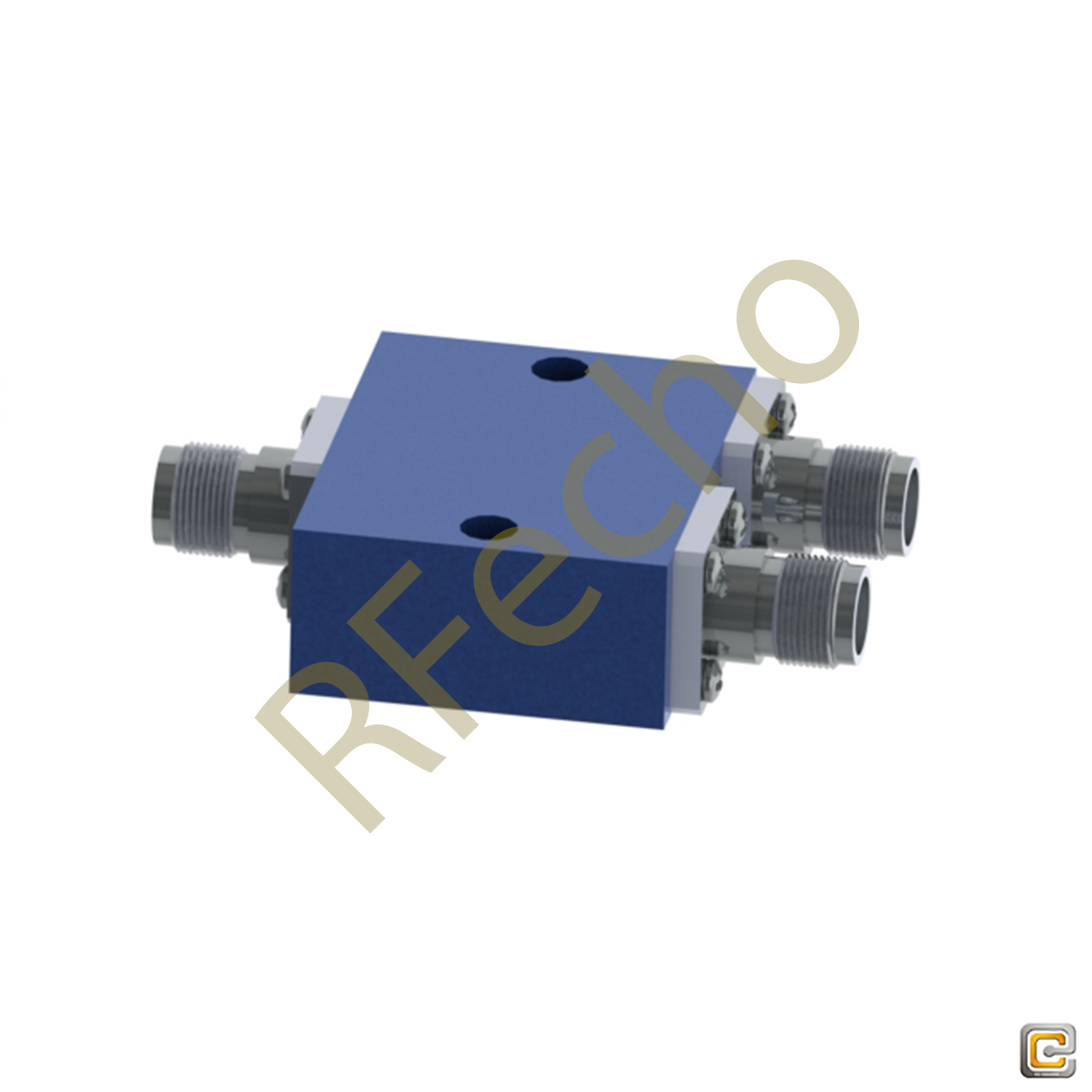

 | 2 Way | OPD-2-50180S | 5 | 18 | 0.5 | 17 | 0.4 | 5 | View Product | Datasheet |

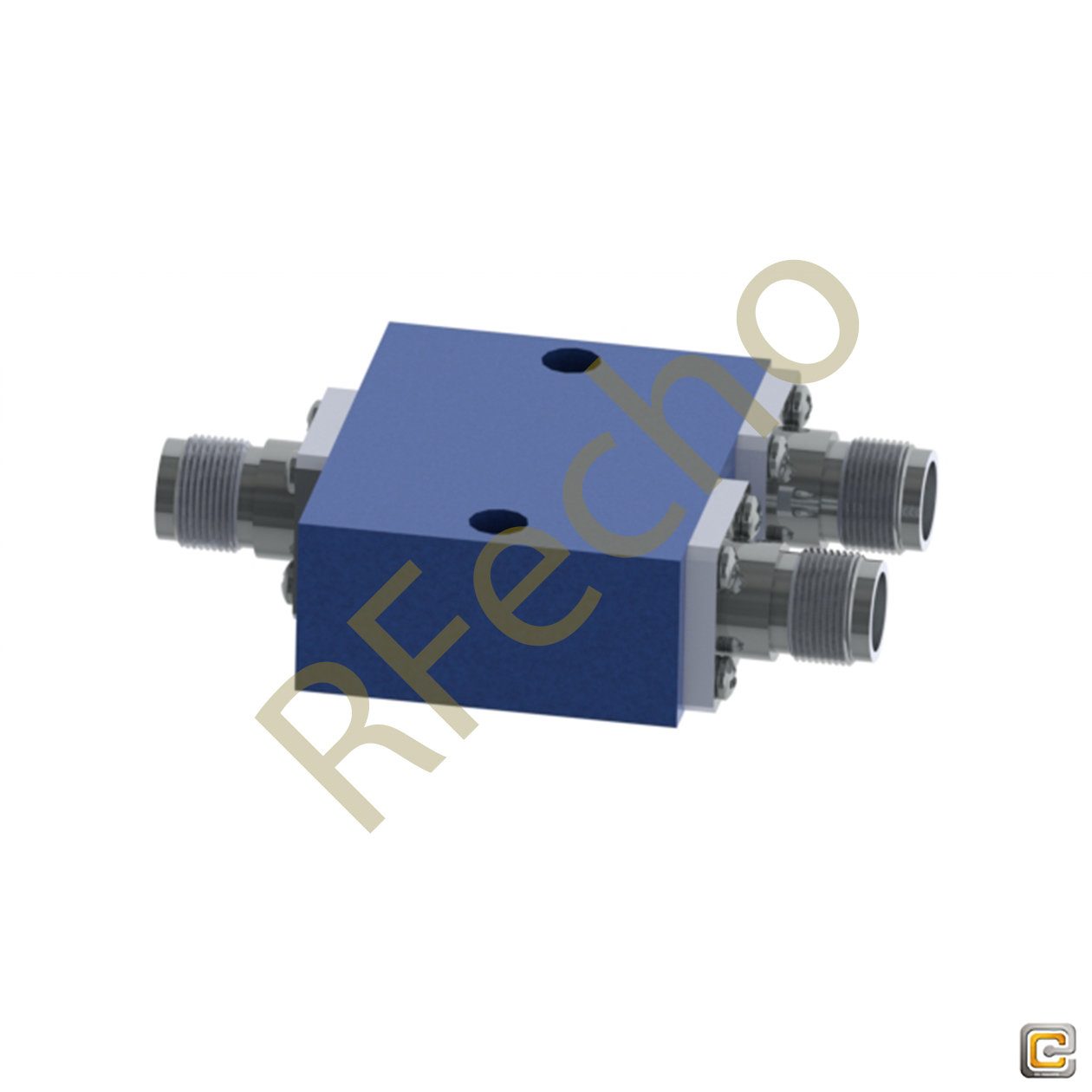

 | 2 Way | OPD-2-80124S | 8 | 12.4 | 0.4 | 20 | 0.2 | 4 | View Product | Datasheet |

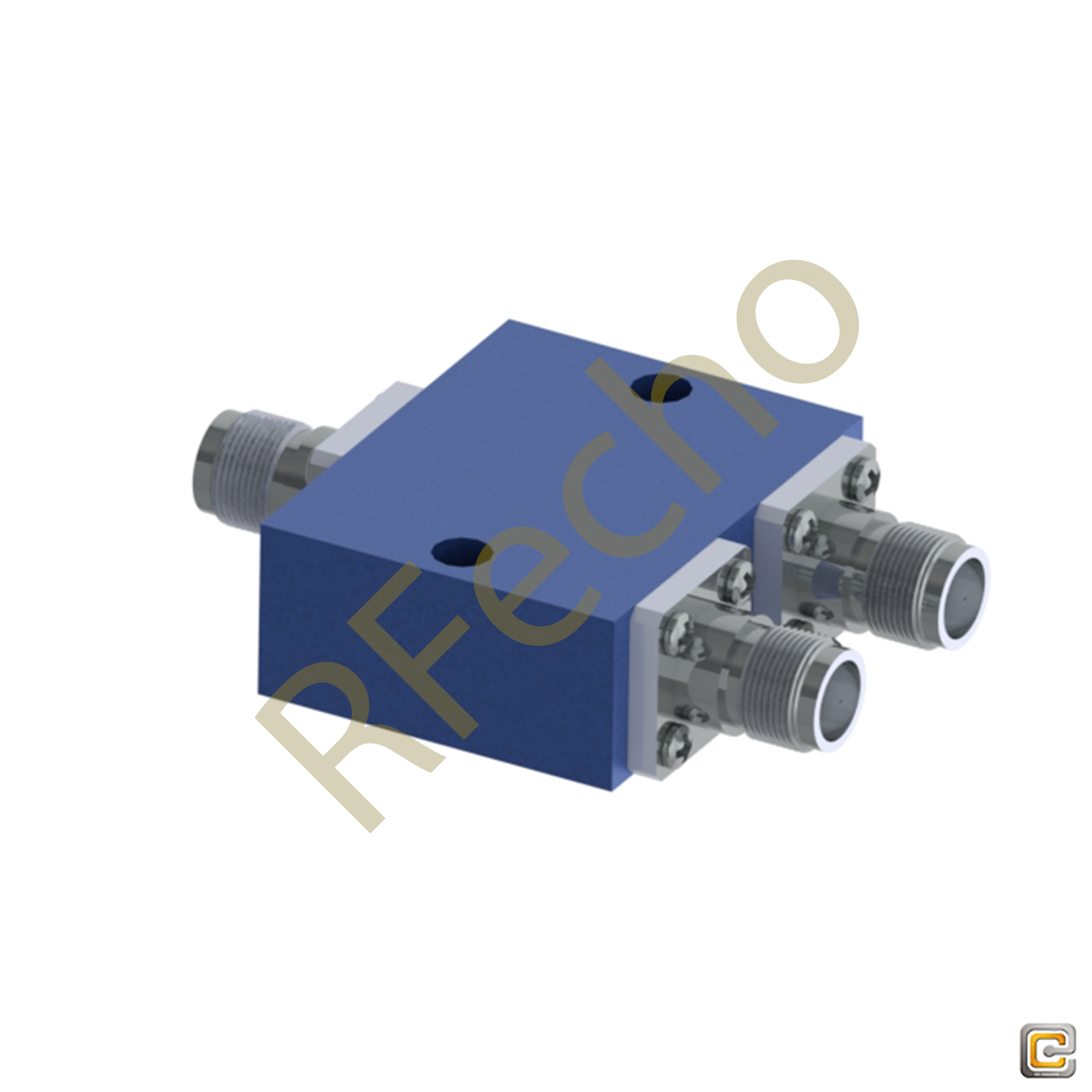

 | 2 Way | OPD-2-100150S | 10 | 15 | 0.4 | 20 | 0.2 | 4 | View Product | Datasheet |
 | 2 Way | OPD-00312-2-HI-S | 0.3 | 10 | ±1.2 | 3 | 1 | View Product | ||
 | 2 Way | ODPA-0036-2-HI-S | 0.3 | 6 | ±1.2 | 3 | 1 | View Product | ||
| 2 Way | ODP-0033-2-HI-S | 0.3 | 3 | ±1.2 | 3 | 1 | View Product | ||
 | 2 Way 0° Power Divider | OPD-A0211 | 1 | 18 | 1.6 | 16 | ±0.5 | ±10 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0212 | 2 | 18 | 1.2 | 16 | ±0.30 | ±5 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0213 | 1 | 12.4 | 1.5 | 16 | ±0.40 | ±6 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0214 | 0.5 | 6 | 0.8 | 18 | ±0.20 | ±3 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0215 | 1 | 8 | 1.2 | 16 | ±0.30 | ±6 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0220 | 0.5 | 2 | 0.5 | 20 | ±0.20 | ±2 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0221 | 0.8 | 2.5 | 0.4 | 20 | ±0.20 | ±2 | View Product | |
 | 2 Way 0° Power Divider | OPD-A0222 | 1 | 4 | 0.5 | 20 | ±0.30 | ±2 | View Product | |
 | 2 Way 0° Power Divider | OPD-A0223 | 2 | 8 | 0.6 | 20 | ±0.30 | ±4 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0224 | 4 | 18 | 0.8 | 18 | ±0.40 | ±5 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0230 | 0.5 | 1 | 0.35 | 20 | ±0.20 | ±2 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0231 | 1 | 2 | 0.35 | 20 | ±0.20 | ±2 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0232 | 2 | 4 | 0.35 | 20 | ±0.20 | ±2 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0233 | 4 | 8 | 0.5 | 20 | ±0.3 | ±3 | View Product | Datasheet |
 | 2 Way 0° Power Divider | OPD-A0234 | 6 | 18 | 0.7 | 18 | ±0.40 | ±5 | View Product | Datasheet |
 | 3 Way 0° Power Divider | OPD-A0323 | 2 | 8 | 1.3 | 18 | ±0.80 | '- | View Product | Datasheet |
 | 3 Way 0° Power Divider | OPD-A0332 | 2 | 4 | 0.6 | 18 | ±0.30 | '- | View Product | Datasheet |
 | 3 Way 0° Power Divider | OPD-A0334 | 8 | 18 | 1.2 | 18 | ±0.60 | '- | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0411 | 1 | 18 | 2.9 | 14 | ±0.8 | ±10 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0412 | 2 | 18 | 2.2 | 16 | ±0.60 | ±10 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0413 | 1 | 12.4 | 2.8 | 16 | ±0.50 | ±7 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0414 | 0.5 | 6 | 1.8 | 16 | ±0.30 | ±4 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0415 | 1 | 8 | 2.2 | 15 | ±0.40 | ±8 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0420 | 0.5 | 2 | 1 | 20 | ±0.3 | ±3 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0421 | 0.8 | 2.5 | 0.7 | 20 | ±0.30 | ±6 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0422 | 1 | 4 | 0.8 | 20 | ±0.30 | ±4 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0423 | 2 | 8 | 1.2 | 17 | ±0.40 | ±5 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0424 | 4 | 18 | 1.6 | 17 | ±0.50 | ±8 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0430 | 0.5 | 1 | 0.6 | 20 | ±0.30 | ±3 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0431 | 1 | 2 | 0.6 | 20 | ±0.30 | ±3 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0432 | 2 | 4 | 0.6 | 20 | ±0.30 | ±3 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0433 | 4 | 8 | 0.8 | 20 | ±0.30 | ±3 | View Product | Datasheet |
 | 4 Way 0° Power Divider | OPD-A0434 | 6 | 18 | 1.3 | 18 | ±0.50 | ±8 | View Product | Datasheet |
 | 6 Way 0° Power Divider | OPD-A0623 | 2 | 8 | 1.6 | 17 | ±1.00 | ±8 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0812 | 2 | 18 | 3.5 | 15 | ±0.80 | ±10 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0814 | 0.5 | 6 | 3 | 16 | ±0.30 | ±8 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0820 | 0.5 | 2 | 1.5 | 20 | ±0.40 | ±4 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0821 | 0.8 | 2.5 | 1.2 | 20 | ±0.50 | ±8 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0822 | 1 | 4 | 1.5 | 20 | ±0.40 | ±4 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0823 | 2 | 8 | 1.8 | 17 | ±0.70 | ±7 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0824 | 4 | 18 | 2.5 | 15 | ±0.60 | ±10 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0831 | 1 | 2 | 1 | 20 | ±0.40 | ±5 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0832 | 2 | 4 | 0.9 | 20 | ±0.40 | ±5 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0833 | 4 | 8 | 1.2 | 18 | ±0.40 | ±4 | View Product | Datasheet |
 | 8 Way 0° Power Divider | OPD-A0834 | 6 | 18 | 2.1 | 17 | ±0.80 | ±10 | View Product | Datasheet |
 | 12 Way 0° Power Divider | OPD-A1223 | 2 | 8 | 2.2 | 16 | ±1.00 | ±7 | View Product | Datasheet |
 | 12 Way 0° Power Divider | OPD-A1234 | 8 | 18 | 2.5 | 14 | ±1.00 | ±10 | View Product | Datasheet |
 | 16 Way 0° Power Divider | OPD-A1621 | 0.8 | 2.5 | 1.7 | 18 | ±0.40 | ±8 | View Product | Datasheet |
-
2 Way RF Power Divider0.5-1GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider
SMA connectors, 0° power divider
Series covers 0.5-18GHz range
Small size, low loss, low VSWR, high isolation
High consistency and quality due to batch production control
Suitable for large-volume requirements
Applications: Electronic warfare, navigation, test… -
4 Way RF Power Divider0.5-1GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider
Frequency Range: 0.5-1GHz
4-Way SMA 0° Power Divider
Low Insertion Loss (0.60dB)
High Isolation (20dB)
Low VSWR (Input 1.25 / Output 1.20)
Excellent Phase and Amplitude Balance
Compact Size
Mass production consistency -
2 Way RF Power Divider0.5-2GHz Insertion Loss 0.50dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Frequency coverage: 0.5-18GHz (Series capability), Specific Model: 0.5-2GHz
Small size, low consumption
Low VSWR, High Isolation
Batch production control with consistent quality
Applications: Electronic countermeasures, Radar, Navigation, Test & Measurement,… -
4 Way RF Power Divider0.5-2GHz Insertion Loss 1.00dB SMA Connector 0° Power Divider
SMA Connectors
0° Power Divider
0.5-2GHz Frequency Coverage
Small Size
Low Loss
Low VSWR
High Isolation
High Consistency
Suitable for Batch Production -
8 Way RF Power Divider, RF Power Dividers0.5-2GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider
Frequency Range: 0.5-2GHz
8-Way Power Division
Insertion Loss: d 1.50dB
Isolation: e 20dB
VSWR (Input/Output): 1.40 / 1.30
Amplitude Balance: ±0.40dB
Phase Balance: ±4°
Small size, low loss, high consistency
SMA-Female Connectors
Meets GJB-1426-92 standard -
2 Way RF Power Divider0.5-6GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Full series coverage 0.5-18GHz (Model specific: 0.5-6GHz)
Small size, low insertion loss, low VSWR, high isolation
High consistency due to mass production control
Suitable for electronic countermeasures, test and… -
4 Way RF Power Divider0.5-6GHz Insertion Loss 1.80dB SMA Connector 0° Power Divider
A-series power dividers are 0° power dividers with SMA connectors, covering the 0.5-18GHz range.
Features include small size, low loss, low VSWR, and high isolation.
Manufactured using batch production control for consistent… -
8 Way RF Power Divider, RF Power Dividers0.5-6GHz Insertion Loss 3.00dB SMA Connector 0° Power Divider
Frequency Range: 0.5-6GHz
8-Way Power Divider
SMA Connectors
Low Insertion Loss: 3.00dB
High Isolation: 16dB
Small Size
Low VSWR
High Consistency Batch Production
